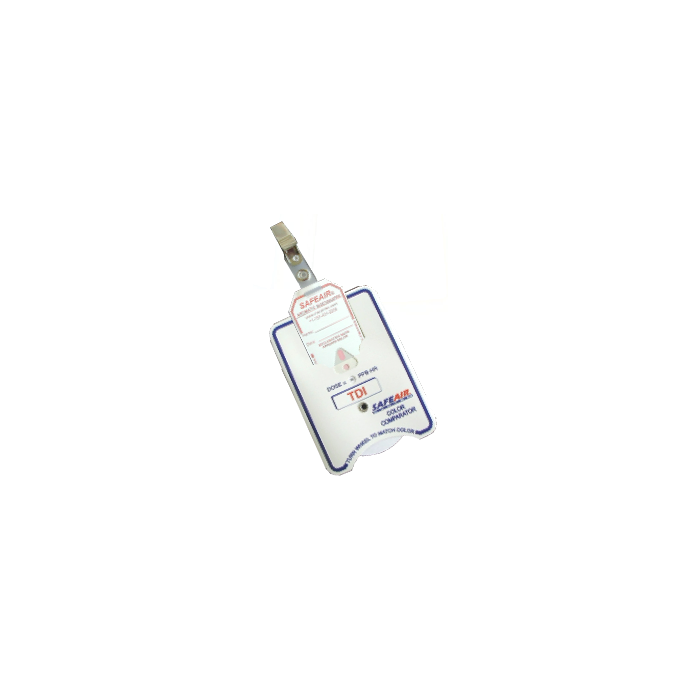

Phosgene Dura SafeAir Color Comparator

The color comparator allows you to pinpoint the exposure dose of the gas when used with the standard badge.

Does NOT come with the badge. Badge needs to be purchased additionally

Note: we are not able to ship the badges overseas

Phosgene Information

SKU
M 383022
  $59.00

Description / Phosgene Dura SafeAir Color Comparator

Color change for Phosgene Dura is from white to red.

The SafeAir Phosgene Dura badge may be used for personnel or area monitoring for exposure times from 1 minutes to 5 days. For higher resolution, the color comparator can be used with the SafeAir phosgene Dura-Badge (part number: 382065-50).



Introduction

Phosgene is a colorless, highly toxic gas with an odor resembling moldy hay. It is an insidious poison. There is no immediate irritation even when fatal concentrations are inhaled. It may cause severe pulmonary edema (abnormal fluid build up in the lungs) or pneumonia. Inhalation of high concentrations causes choking, painful breathing and coughing. OSHA PEL (permissible) exposure limit for phosgene is 0.1 ppm (averaged over an 8-hour work shift). NIOSH IDLH (immediately dangerous to life or health) exposure limit for phosgene is 2 ppm.

Phosgene is used in the manufacturing of numerous organic chemicals. It is also used in the production of glass, resins, dyes and plastics.



Principle of Operation

The SafeAir Phosgene Dura-Badge is a monitoring system designed to indicate the presence of phosgene. The SafeAir Phosgene Dura-Badge detects the presence of phosgene by forming a color change in the shape of an exclamation mark inside the triangle. This indication is produced by a color-forming reaction, which occurs when phosgene reacts with a flat indicator layer.

 SafeAir chemical detection badges are a visual indication badge that alerts you with a color changing exclamation mark when there is a specific chemical hazard.

Operating Instructions

1. Remove the badge from its protective pouch.

2. Remove activation label prior to use.

3. For personnel monitoring, attach the badge near the user’s breathing zone (i.e. the collar) with the front side exposed to the surrounding atmosphere.

4. Between work shifts, store the badge in a sealed bag in a cool, dark environment.

5. The exclamation mark appears within the triangle when phosgene is present. Please note that the exclamation mark will appear underneath the printed exposure dose (sensitivity).

6. To obtain the average concentration, divide the exposure dose (ppm∙min) by the exposure time in minutes (min).



Storage

The ChromAir phosgene monitor should be stored at 25C in its sealed bag at all times. It's best to store the badge in a cool, dark, sealed environment between work shifts.



Sampling Parameters

Color Change

white to red

Exposure dose (Badge)

1.2 ppm-min

Exposure dose (Badge with color comparator)

1.2-450 ppm-min

Maximum recommended sampling time

5 consecutive days

Minimum recommended sampling time

1 minutes

Relative humidity range

20% - 95%

Face velocity range

5 - 168 cm/sec

Temperature range

12ºC - 37.5ºC

Light effect - Indirect sunlight

no effect

Light effect - Artificial light

no effect

Refrigerated shelf life

1 year at 25ºC



Downloads

383022 & 382065 Manual

Phosgene Information

More Information

Manufacturer Morphix
Gas Phosgene (COCl2)
Operational Temperature Range 12°C - 37.5°C
Operational RH Range 20% - 95%
Maximum Exposure 1.2 ppm-min
Audible Alarm No
Calibration N/A
Sensor Life 5 Days
Range 1.2-450 ppm-min
Unit Features

Phosgene Range: 1.2 - 450 ppm-min

Sensor Range

1.2-450 ppm-min
