API 465M (Used)

Used Teledyne API-465M Ozone Analyzer.  10,000 ppm range, rack-mount unit with integrated sample pump.

SKU
model-465M_used
  $2,500.00

Description / API 465M (Used)

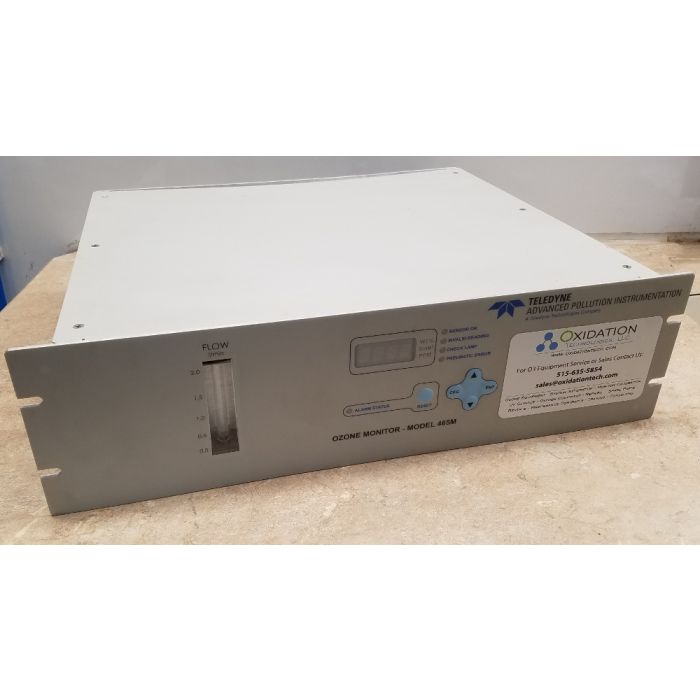

Used Teledyne API-465M Ozone Analyzer:

The Teledyne API-465M ozone analyzer is a medium range analyzer designed to measure ozone in ppm at levels up to 10,000 ppm.  This unit is a rack-mount unit we purchaed from a lab that used it very little.  This unit was virtually brand-new when purchased, still had the protective plastic on the flowmeter.  We did rent this unit out to a customer, and used it for a few pilot tests in our faciliity.  Therefore, there is some use on this device now.

This unit will be calibrated directly prior to shipping to a NIST traceable standard.  This will be sold with a fresh calibration certificate.



Part Number Model 465M
 Measurement Method UV Absorption
 Measurement range 0-10,000 ppm
Units of measurement ppm
Resolution 1 ppm
Linearity 0.5% of full scale
Sample Flow 0.1 to 1 LPM
Response Time
< 45 seconds to 95%
Gas Flow Rate 1 - 1.5 LPM
 Power 120 VAC 60 Hz



Downloads:

API Model 465M Brochure

API Model 465M Manual







More Information

Manufacturer Misc
4-20 mA Output No
Min, Max, Avg No
Voltage Output None
Datalogging No
Rechargeable Yes
Warranty 1 Year
Unit Features

Used Teledyne API-465M Ozone Analyzer.  10,000 ppm range, rack-mount unit with integrated sample pump.
