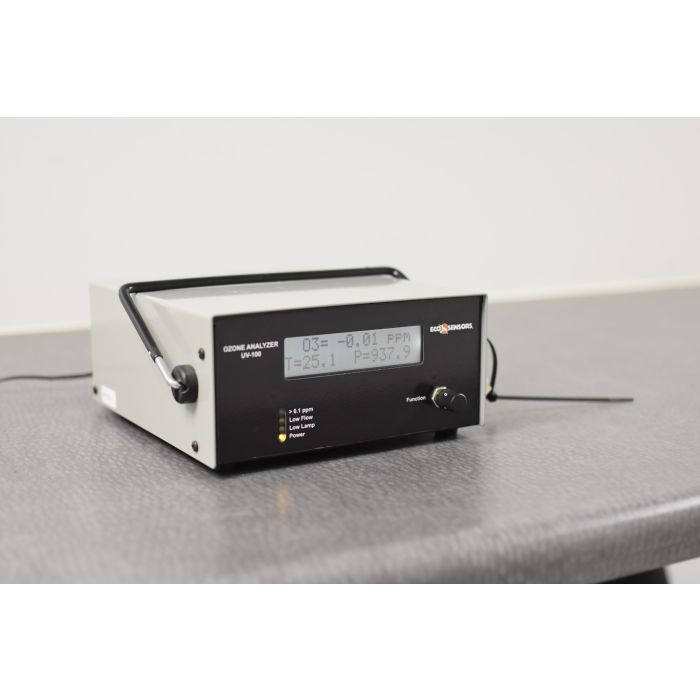

UV-100 Ozone Analyzer - Used

The UV-100 Ozone Analyzer is compact and easy to use.  This analyzer will measure ozone in ppm from 0 - 900 ppm.  Portable, and compact, this is a great device to use when you need to know exactly what your ozone levels are!

The Eco Sensors model UV-100 ozone analyzer is for general purpose measurement of ozone in air. Its range is .01-900 ppm (v) with 2% accuracy, and it includes a built-in data logger. The UV-100 weighs only 2.1 kg (4.7 lb), it is powered by an AC adapter or 12 V external battery, and is equally versatile for the laboratory or for process monitoring. The outputs are digital display, 0-2.5 VDC and 4-20 mA. The instrument features LEDs to indicate calibration is due, the sample line filter should be replaced, and that the sampling area is above the danger limit of .1 ppm.

Specifications:

- UV Source: 254 nm mercury lamp

- Range: .01-900 ppm v/v in 3 ranges: 0-1.00 ppm, 0-10.0 ppm, 0-900.0 ppm

- Outputs: Digital display. 0-2.5 V, 4-20 mA, data logging

- Accuracy: 2%

- Sampling time: 10 seconds

- LED Indicators: On-off, Recalibrate, Change Filter, >.1 ppm at sample area

- Size: 95 × 210 × 216 mm (3.75 × 8.25 × 8.50 in)

- Weight: 2.1 kg (4.7 lb)

- Power requirement: 12 VDC at 400 mA.

- Warranty: One year

Downloads:

     UV-100 Manual

     Ozone Information
