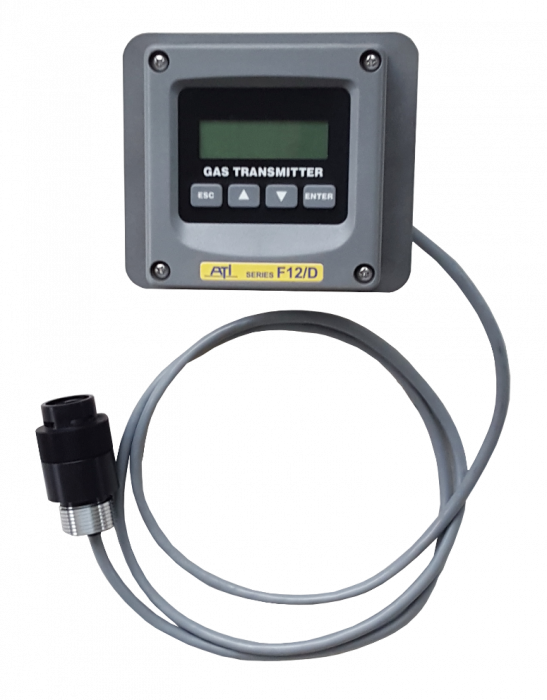

The Series F12 Gas Transmitter, now available in its Intrinsically Safe (IS) version, brings enhanced safety and flexibility to hazardous area applications. This pre-configured F12-is Gas Monitor comes equipped with a sensor holder and a 6-foot cable, ensuring reliable toxic gas detection and measurement for both specialized and general-purpose environments.
Key Specifications
- 2-Wire Transmitter: Streamlined and efficient.
- Sensor Holder with 6ft Cable: Facilitates remote sensor placement.
- No Auto Test or Digital Output: Focused on essential functionalities for safety and performance.
For those seeking a fully customizable solution, you can explore the complete range of configurations for the F12-is Gas Monitor here.
Advanced Features of the F12 Gas Transmitter
Intrinsically Safe Design: Perfect for hazardous areas, ensuring safe operation where IS devices are mandatory.
Interchangeable Sensors: Compatible with up to 45 different sensor modules, allowing for a wide range of gas detection without needing multiple transmitters.
Smart Sensor Modules: Plug-in sensors that store calibration data, enabling off-site calibration and easy on-site installation without additional adjustments.
LCD Graphics Display: Clear, easy-to-read gas concentrations and menu options for setup and operation.
Internal Data Logger: Stores gas measurements at user-defined intervals, retrievable via the LCD display. Downloadable data through HART™ or MODBUS™ interfaces.
Non-Intrusive Operation: Allows calibration, alarm setup, and data view via sealed front panel switches, maintaining NEMA 4X enclosure integrity.
Output Simulation: User-defined analog output values and relay states for system testing and maintenance without impacting actual gas detection.
Customization Options for F12 Gas Transmitter
Sensor Modules: Choose based on the specific gas and detection range needed.
Transmitter Type: Standard IS model with 4-20 mA output, loop-powered. Non-IS versions with additional features like relays and heated sensors are available.
Sensor Holder Style:
- Integral Sensor: Built into the transmitter enclosure.
- Remote Sensor Holder: Comes with a fixed 6-foot cable or a junction box for lengths up to 100 feet.
- Duct Mount Sensor Holder: Includes duct mount adapter and 25 feet of cable.
- Heated Sensors: Available for environments prone to condensation.
Digital Output Options:
- Standard 4-20 mA Output: Compatible with all sensors.
- HART Interface: Available for all sensors.
- MODBUS Interface: Available for RS-485 and 115 VAC sensors.
Accessories and Enhancements
- Calibration Adapter: Essential for performing zero calibration.
- Flowcell Assembly: For accurate gas measurement in a flowing sample.
- Sensor Module Keeper: Holds up to 4 sensors, enabling quick sensor changes.
- Duct Sensor Adapter: Facilitates secure sensor mounting in ducts or pipes.
- Panel Mount Bracket: Standard with F12 for panel installations.
- RAP-1 and RAP-2 Alarm Panels: Visual and audible alarms for gas level warnings.
Wireless Monitoring & Data Logging Kit
Enhance your monitoring capabilities with the Wireless Monitoring & Data Logging Kit. This kit allows you to connect your fixed mount monitor to the internet, enabling remote access and instant notifications via text and email alerts. This feature is crucial for comprehensive and real-time gas detection management.
Technical Specifications
- Sensor Type: Electrochemical Cell.
- Range: User adjustable.
- Accuracy: ±10%, limited by calibration gas accuracy.
- Repeatability: ±1% (Electronic).
- Zero Drift: <2% full scale per month.
- Span Drift: <3% per month, depending on the environment.
- Analog Output: 4-20 mA, 600 ohms max. at 24 VDC.
- Power Requirements:
- Standard and HART™ Option: 12-30 VDC, 25 mA max.
- MODBUS Option: 10-28 VDC for RS232/485.
- Enclosure: NEMA 4X, polycarbonate, weatherproof, and corrosion-resistant.
- Display: Graphics LCD, 96w x 32h, backlit.
- Calibration: Sensor replacement after failure, with a typical sensor life of 2 years.
Conclusion
The Series F12-is Gas Monitor is a highly versatile, safe, and reliable solution for detecting toxic gases in both hazardous and general-purpose applications. Its interchangeable sensors, smart calibration features, and robust design make it a standout choice for ensuring safety and compliance in various environments. Explore the full range of configurations and enhance your gas detection capabilities with the F12-is today.
