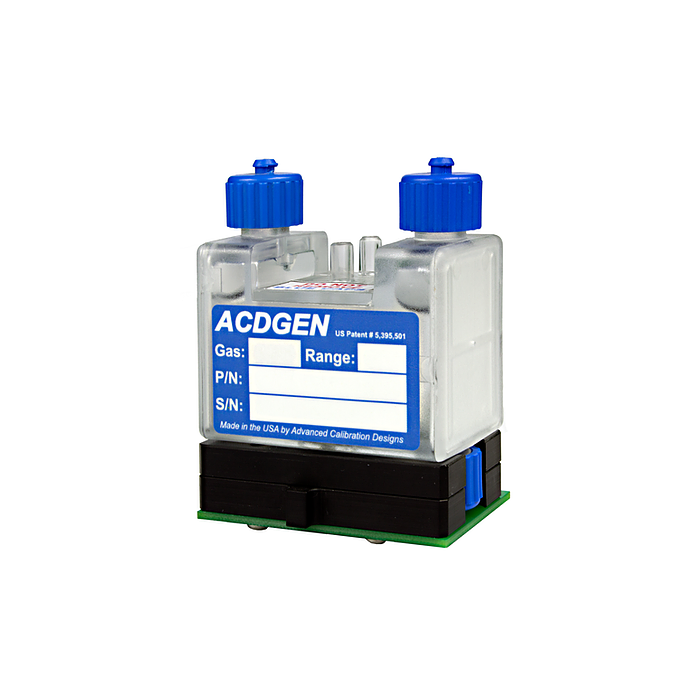

When precision gas calibration is critical, the Hydrogen Sulfide GENie EC Source Gas offers unmatched reliability and portability. Designed specifically for calibrating hydrogen sulfide (H₂S) gas detection instruments, this micro source provides highly accurate gas concentrations in a compact, easy-to-use format.
Engineered to work seamlessly with the GENie EC Calibration Kit, this system gives field technicians and safety managers the confidence needed to validate and verify gas sensors for personal safety, industrial hygiene, and environmental monitoring.
Hydrogen Sulfide GENie EC Source Options
Choose from two H₂S concentration ranges to match your calibration requirements:
- Micro Source: 0.05 to 5 ppm
- Standard Source: 0.5 to 50 ppm
These ranges make it suitable for everything from low-level leak detection to high-range sensor calibration.
Note: The GENie EC Source Gas must be used with the GENie EC Calibration Kit for proper operation.
What’s Included in the GENie EC Calibration Kit
The complete calibration kit comes fully equipped to get you started right out of the case:
- GENie EC Complete System
- Hard Case Assembly for protection and portability
- 5′ Viton Hose with Quick Connect fittings
Together, this system creates a controlled and efficient environment for calibrating electrochemical gas sensors accurately in the field.
Technical Specifications
| Specification | Details |
|---|---|
| Air Flow Rate | 0.2 to 1 LPM (with internal pump) |
| Sample Draw Rate | 0.1 to 1.2 LPM |
| Source Life | 10, 50, or 100 hours/source |
| Warm-Up Time (to 90%) | Approximately 2 minutes |
| Dimensions (L x W x H) | 5” x 3.88” x 3.13” |
| Weight | 2 lbs |
| Operating Temperature | 0°C to 50°C |
| Relative Humidity | 0-100% (intermittent use) |
| Accuracy | ±10% |
| Repeatability | ±5% |
| Battery Power | 4 Alkaline ‘AA’ batteries |
| Battery Life | 8 hours at 0.5 LPM flow rate |
These specifications make the GENie EC both highly portable and dependable in a wide range of environments, from labs to rugged field sites.
Why Choose the GENie EC for H₂S Calibration?
- Portable and battery-powered for field work
- Quick warm-up, ready for use in just 2 minutes
- Interchangeable sources with varying lifespan (10, 50, or 100 hours)
- High accuracy with ±10% precision
- Easy plug-and-play operation
Applications
The Hydrogen Sulfide GENie EC system is ideal for:
- Gas detector bump testing
- Sensor calibration in safety systems
- Industrial hygiene monitoring
- Wastewater treatment facilities
- Oil and gas field operations
Conclusion
The Hydrogen Sulfide GENie EC Source Gas, when paired with the GENie EC Calibration Kit, is the perfect solution for professionals who need precise, repeatable, and portable gas calibration. Whether you’re managing safety systems in a refinery or conducting environmental monitoring at a remote site, this compact powerhouse ensures your hydrogen sulfide detection equipment is always accurate and reliable.
