The UV-106MH-OEM is a versatile, medium-to-high range UV ozone analyzer designed for precise ozone measurements. With its OEM configuration, the analyzer is optimized for integration into existing systems and processes, offering flexibility and efficiency for a range of applications.
Key Specifications:
- Measurement Range: 0 – 10,000 ppm of ozone (O₃)
- Resolution: 0.1 ppm for high accuracy
- Ozone Detection: Up to 1% by volume

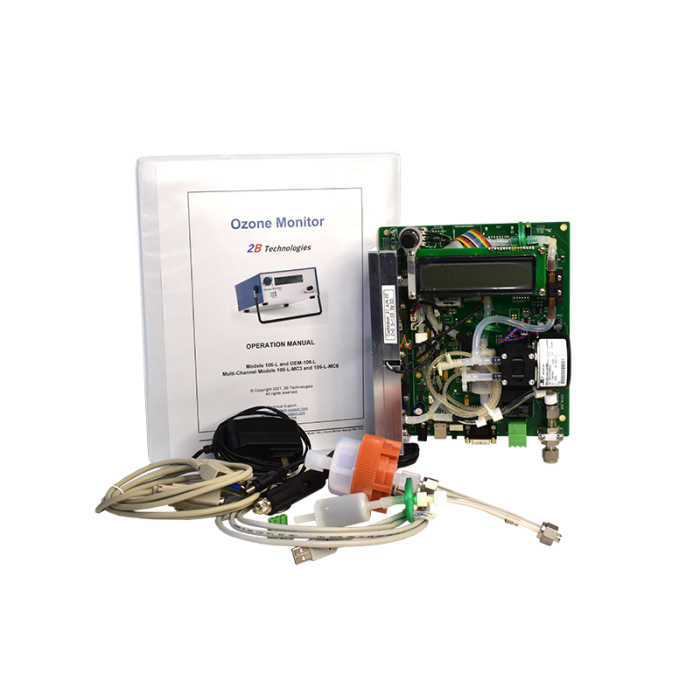

- OEM Configuration: All key components are mounted directly to the printed circuit board, minimizing size and simplifying integration.
Measurement Method: UV Absorption
The UV-106MH-OEM uses UV absorption technology to detect ozone levels. The analyzer measures ozone concentration by determining the absorption rate of ozone using a UV lamp. This method ensures reliable and precise measurements across the full range, while also minimizing cross-sensitivity to other gases.
Built-in Features:
- Internal Data Logger: Equipped with a real-time clock and interactive menus, allowing for customizable data averaging options (10 seconds, 1 minute, 5 minutes, or 1 hour).
- Outputs: Includes USB and RS-232 output for time, date, ozone concentration, internal temperature, and pressure data, plus analog output (0-2.5 V and 4-20 mA) for concentration.
- Relays for Control: Two-level relay for controlling devices, such as activating or deactivating an ozone source or alert system.
- Power Efficiency: Low power consumption, allowing for battery operation.
- Sampling Method: Integrated sample pump pulls ozone into the analyzer for fast and reliable measurement.
Enclosures for Versatility:
The UV-106MH-OEM offers flexible installation options, available in both a standard bench mount configuration and a more rugged NEMA enclosure for industrial and harsh environments.
Applications:
The UV-106MH-OEM is designed for a wide range of ozone monitoring applications, including:
- Process control and ozone generation systems
- Environmental monitoring
- Air purification systems
- Industrial hygiene and safety
Additional Features:
- Long-life pump (15,000 hours)
- Field-replaceable battery
- Simple calibration (recommended annually)
With its compact design, advanced UV absorption technology, and flexible configuration options, the UV-106MH-OEM offers a reliable and precise solution for medium and high-range ozone monitoring. Whether used in industrial environments or integrated into OEM systems, this ozone analyzer delivers high performance with minimal power consumption and user-friendly functionality.
