In industrial environments where gas monitoring is critical, having a reliable and versatile system in place is paramount. The B14 Gas Alarm Module Receivers are designed to meet these demands, offering robust performance and flexibility. These modules accept input from two, three, or four-wire 4-20mA transmitters located up to 10,000 feet away, providing comprehensive local alarm, display, and retransmission functions. Whether you need to monitor gases in multiple rooms from a single remote location or integrate with a variety of gas monitors, the B14 is an ideal solution.
Key Features of the B14
LED Display and Monitoring
- Comprehensive Display: Gas concentrations are displayed in parts per million (PPM), parts per billion (PPB), percent, or percent lower explosive limit (LEL), configurable at the time of ordering.
- Multiple Gas Compatibility: The B14 is compatible with 38 different gases, making it a versatile choice for various applications.
Advanced Alarm System
- Three Alarm Setpoints: Each module features separate caution, warning, and alarm setpoints with LED bar indicators. The LEDs flash initially upon alarm activation and then change to steady once the alarm condition is acknowledged.
- Relay Outputs: Equipped with three individual alarm relays per module, these relays can be assigned to any setpoint, allowing for multiple alarm functions at a single point. They can be configured for standard or fail-safe operation, as well as latching or non-latching operation.
- Trouble Alarm: An additional fourth LED alarm bar and relay indicate trouble conditions, such as loss of input signal or if the 4-20mA input drops below a specific value.
Remote and Internal Control
- Remote Reset Input: Provides isolated input contacts for acknowledging alarm conditions from a remote location or via telemetry equipment.
- Internal Transmitter Power: Supplies 24 VDC to operate two or three-wire transmitters, simplifying power management.
Signal Retransmission and Power
- Signal Retransmission: Each module provides a 4-20mA output, optically isolated from the input signal to prevent ground fault issues.
- DC Powered: The B14 modules operate on a 12 VDC power supply, which can power up to three modules (or two with battery backup). User-provided 12-28 VDC supplies are also compatible.
Customization and Ordering
The B14 modules are highly customizable to meet specific requirements. Here’s how you can tailor your order:
Alarm Measurement Range
Specify the gases and ranges you need displayed. Each module is custom set, so a variety of gases and ranges can be accommodated.
Enclosure Options
The B14 comes in various enclosure sizes based on the number of receivers and power supplies required, all made from NEMA 4X material with standard 35mm DIN rail mounting:

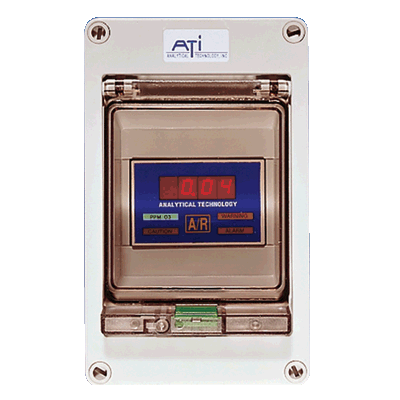

- Single Module: Houses a single receiver module for DC power applications.
- Two Module: Houses two receivers (user supplies DC power) or one receiver and one power supply (AC power).
- Three Module: Houses three receivers (user supplies DC power) or two receivers and one power supply (AC power).
- Six Module: Houses six receivers (user supplies DC power) or four receivers and two power supplies (AC power).
- Nine Module: Houses nine receivers (user supplies DC power) or eight receivers and one 65 Watt power supply.
Additional Options and Accessories
Enhance your B14 system with these additional options:
- Power Supplies: Different power supplies are available depending on the number of modules.
- Battery Backup: Ensures uninterrupted operation housed in a NEMA 4X enclosure.
- Audible Horns and Strobes: Internal and external horns, and strobes in various colors and voltages for clear alarm signaling.
Specifications
- Concentration Display: 4-digit LCD, programmable range.
- Input: 2, 3, or 4-wire 4-20mA transmitter.
- Output: Isolated 4-20mA, 1000 ohms max load.
- Power: 12-28 VDC, 400 mA max.
- Alarm Indicators: LED bars for caution, warning, and alarm.
- Relays: 3 assignable relays, configurable for various functions.
- Trouble Function: LED bar indicator and SPDT, 7 A relay.
- Operating Temp: -40°C to +55°C.
- Humidity: 0-99% RH, non-condensing.
Conclusion
The B14 Gas Alarm Module Receiver is a robust and flexible solution for gas detection and monitoring. Its compatibility with a wide range of gases, customizable alarm settings, and advanced features make it an invaluable tool for ensuring safety in various industrial environments. Whether you need local monitoring or remote alarm acknowledgment, the B14 provides reliable and comprehensive gas monitoring solutions.
For more information or to place an order, please contact us. Our team will help customize the B14 system to meet your specific needs, ensuring optimal performance and safety for your operations.
