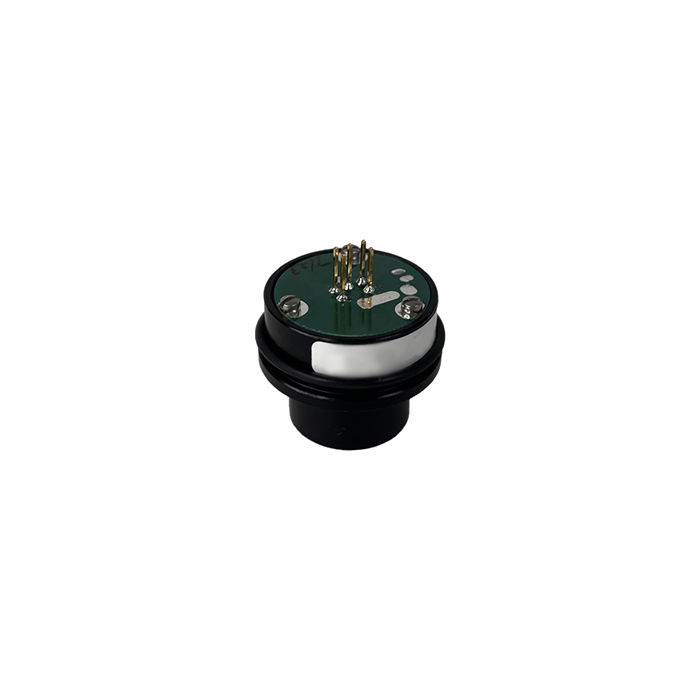

A12 Nitrogen Dioxide Sensor (00-0276)
E10-26 Nitrogen Dioxide Gas Sensor only for the A12 Gas Transmitter.
Replaces Nitrogen Dioxide sensor, calibration range is 0-20 ppm for each sensor.
- SKU
- 00-0276
$234.00
Description / A12 Nitrogen Dioxide Sensor (00-0276)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Nitrogen Dioxide sensor, standard calibration of 0-20pppm. Please note that this sensor need to be calibrated on-site.
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0237 Nitrogen Dioxide 0-20ppm
If you need the Sensing Module WITH an Auto-Test Generator, then you need: 00-0238 Nitrogen Dioxide
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Nitrogen Dioxide (NO2) |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Standard Range | 0-20 ppm |
| Minimum Range | 0-5 ppm |
| Maximum Range | 0-200 ppm |
| Monitor sensor fits | A12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -30º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
