UV-106-H Ozone Analyzer

High range precision UV Ozone Analyzer for process ozone measurement.  Measures ozone generator production at levels up to 20% by weight with resolution of 0.01%.

Rental Option HERE

1 In Stock

The UV-106-H is a high range ozone analyzer featuring ozone measurements up to 20% by weight to verify ozone generator production in process.  Range of 0-20% by weight, or 0-14% by volume with resolution of 0.01%.

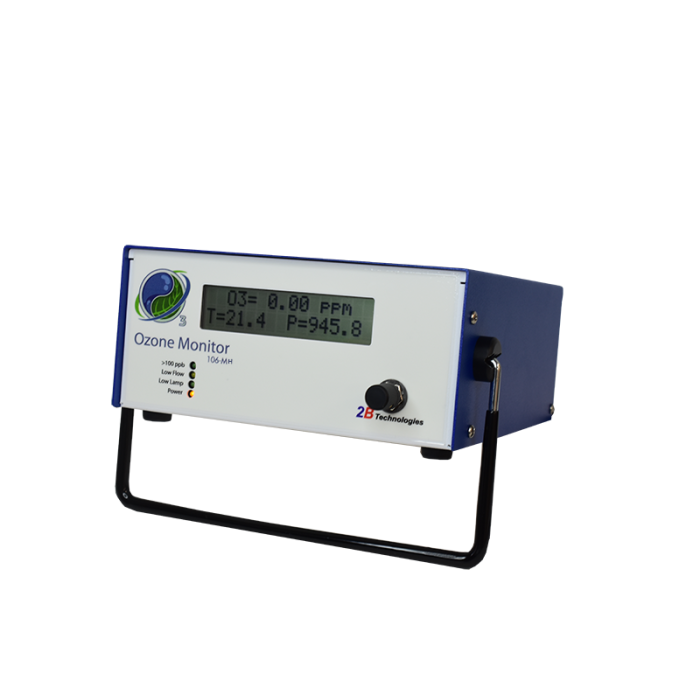

Bench mount ozone analyzer is compact and easy to use.  The UV-106-H can be purchased in either the bench mount or NEMA enclosure.

Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream.  A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp.  This method of ozone detection will offer accurate detection of ozone at levels up to 20% by weight to measure output from an ozone generator accurately.

If you're looking to temporarily monitor ozone, we have a Rental Option HERE



- Measurement based on UV absorption

- 0-20% by weight or 0-14% by volume measurements

- 0-01% resolution

- Low power consumption; can be battery operated

- Internal data logger with real time clock

- On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr

- USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure

- Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units

- Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)

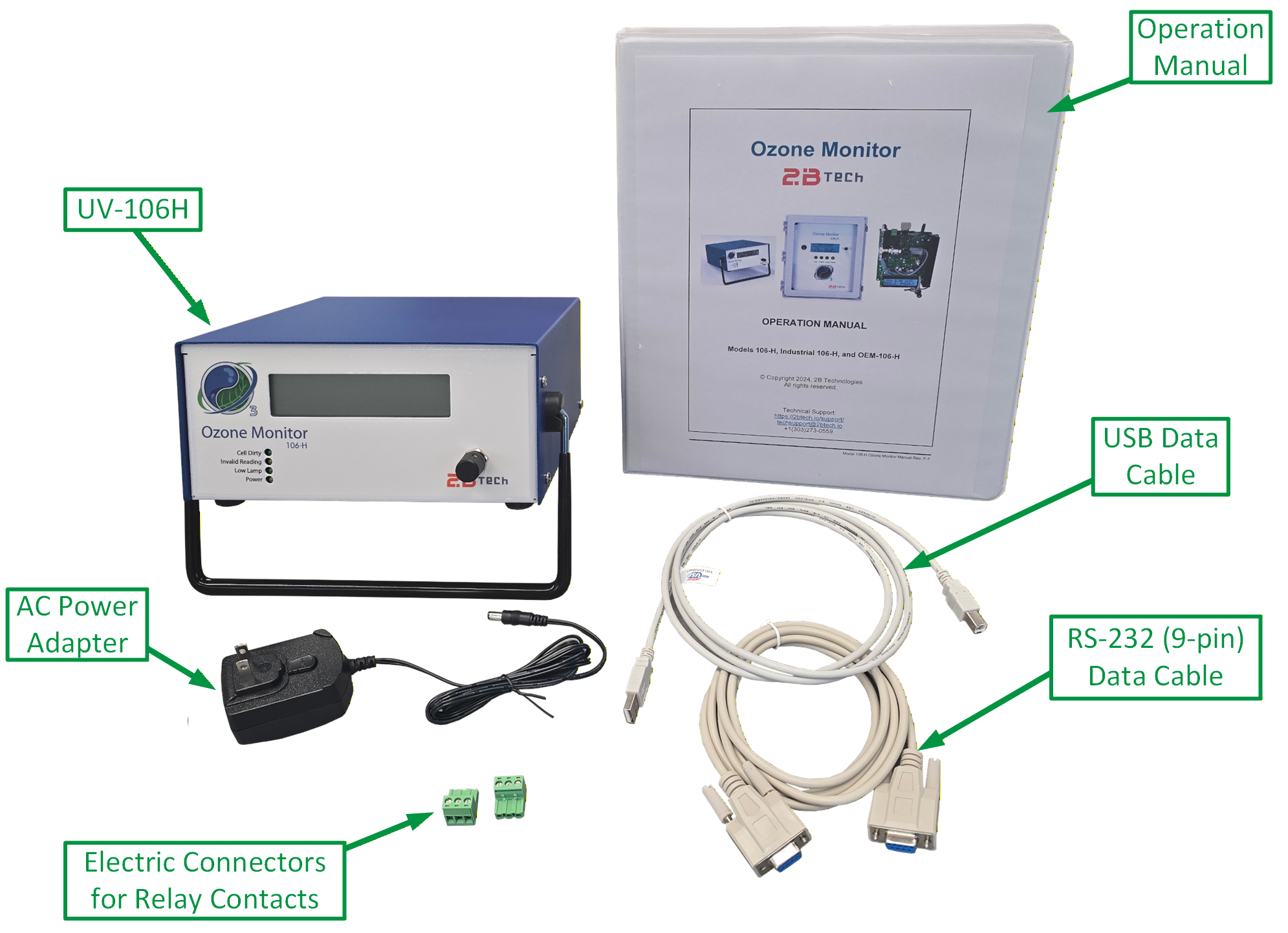

Carry Case:

The UV-106-H ozone analyzer can also come with this carrying case. While most ozone analyzers are difficult to transport from place to place, this carrying case makes it extremely easy to move your UV-106-H inbetween locations. One of it's great features is that the carrying case not only holds your UV-106-H analyzer, but it can also conveniently hold all of the additional cables and tubing. With expensive equipment like this, it is nice to not have to worry about your ozone analyzer incurring any damage when moving from spot to spot.


The Model UV-106 was designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board.  Therefore, the UV-106 can be purchased without an enclosure for OEM applications.
UV-106H OEM Ozone Analzyer
For applications where a wall mount analyzer, or rugged enclosure for harsh environments are a better fit, the NEMA enclosure can be used for the UV-106-H Ozone Analyzer.
More Information
Manufacturer 2B Technologies
Quickbooks Stock Level 1.000000
Call For Price No
Gas Ozone (O3)
Resolution 0.01 %
Response Time 10 seconds
Sensor type UV Analzyer
Sampling Method Fan
Alarms Relays
Power Requirements 12 VDC with supplied adapter
Size 95 × 210 × 216 mm (3.75 × 8.25 × 8.50 in)
Field Replaceable Battery No
Warranty 1 Year
Audible Alarm No
Calibration Annually
Range 0-20% by weight, in oxygen or air, 0-14% by volume
Unit Features

-0.01% Resolution

-On-Board Microprocessor

-NEMA Enclosure Option

Sensor Range

0-20% by weight, in oxygen or air

0-14% by volume (O3)
