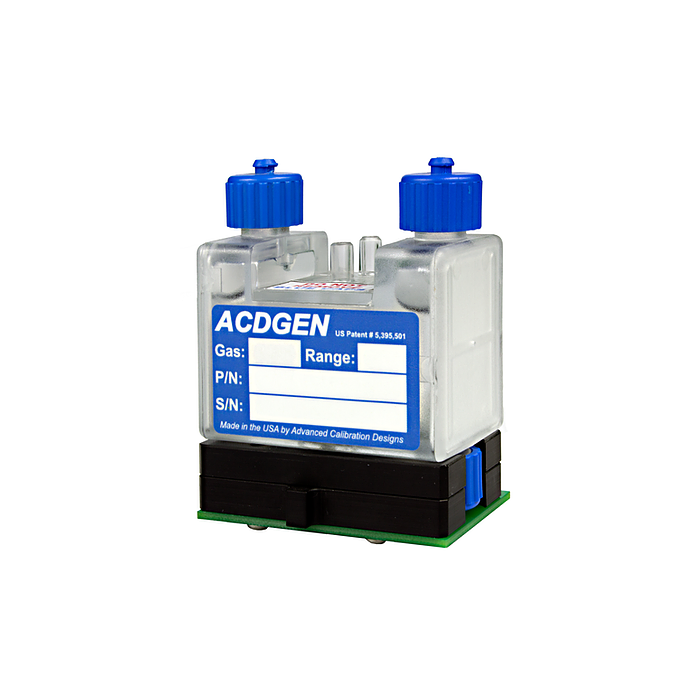

Hydrogen GENie EC Source Gas
Hydrogen GENie EC Source Gas
Micro Source: .05-5 ppm
Source: .5-50 ppm
*Please Note: The GENie EC Source Gas must be used with the GENie EC Calibration Kit.
- SKU
- CalGas-GENie-H2
Related Products
Description / Hydrogen GENie EC Source Gas
Micro Source: .05-5 ppm
Source: .5-50 ppm
*Please Note: The GENie EC Source Gas must be used with the GENie EC Calibration Kit.
What's Included (in the complete GENie EC Calibration Kit)
-GENie EC Complete System
-Hard Case Assy GENie
-Hose, with Quick Connect, Viton, 5'
Technical Specifications:
| Air Flow Rate (with internal pump) | 0.2 to 1 LPM |
| Sample Draw Rate | 0.1 to 1.2 LPM |
| Source Life | 10, 50 or 100 hours / source |
| Warm-Up Time (to 90%) | Approximately 2 minutes |
| L x W x H | 5' x 3.88' x 3.13' |
| Weight | 2 lbs |
| Operating Temperature | 0C to 50C |
| Relative Humidity (intermittent use) | 0-100% |
| Accuracy | +/- 10% |
| Repeatability | +/- 5% |
| Battery Power | 4 Alkaline 'AA' |
| Battery Life | 8 hours (at .5 LPM flow rate) |
Downloadable Content:
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | ACD |
|---|---|
| Standard Range | 0.5-5 ppm |
| Gas | Hydrogen (H2) |
| Range | 0.5-5 ppm |
| Monitor Type | GENie EC |
| Warranty | 1 Year |
