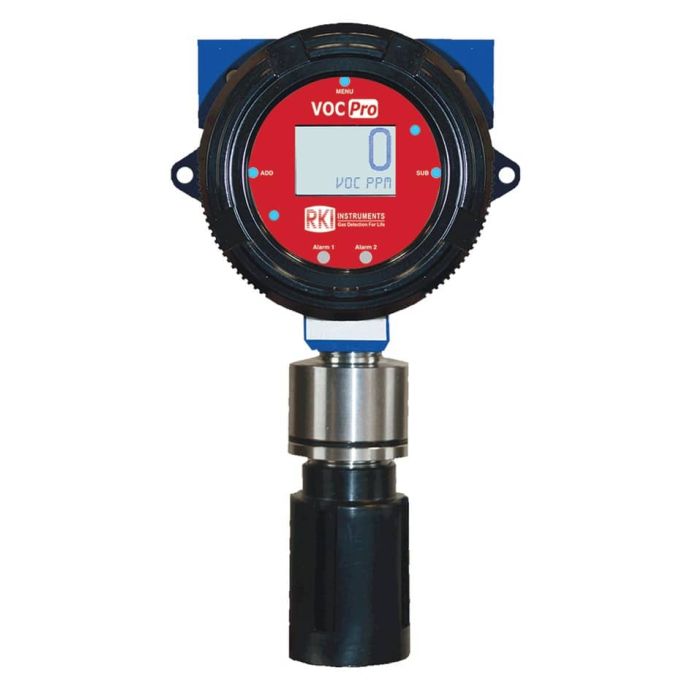

3-Wire Explosion Proof Transmitter VOC Pro - PID Detector Head Low PPM Range
- SKU
- VOC-Pro-Low-Range
Description / 3-Wire Explosion Proof Transmitter VOC Pro - PID Detector Head Low PPM Range
Features:
- PID sensor options: 10.0 eV lamp / 11.7 eV / 10.6 eV ppb / 10.6 eV ppm
- Wired power (3-Wire), 12 to 35 VDC operating voltage
- Operating temperature range -40°C to +54°C
- Graphical LCD with LED backlight
- 3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches
- 2 Individually configurable alarms
- 2 Front panel LED indicators (amber and red)
- 2 Optional fully programmable alarm relays (dry contacts)
- Output options: 4-20mA (3-wire) analog, RS-485 modbus (4 wire)
Applications:
- Petrochemical plants
- Refineries
- Water & wastewater treatment plants
- Pulp & paper mills
- Manufacturing facilities
- Automotive
- Semiconductor plants
- Chemical plants
Specifications:
- Sensor Type: PID
- Operating Voltage: Wired (3-Wire) 12 to 35 VDC
- Display Screen: 102x64 Resolution graphical LCD screen transflective with readable white LED backlight
- Interface: 3 Push-buttons (MENU, ADD and SUB)
PID Sensor Response Factors for VOCs:
Downloads:
More Information
| Manufacturer | RKI Intruments |
|---|---|
| Call For Price | Yes |
| Gas | VOC |
| 4-20 mA Output | No |
| Relays | 2 Relays |
| Field Replaceable Sensor | No |
| Auto Test Generator | None |
| Min, Max, Avg | No |
| Voltage Output | None |
| Datalogging | No |
| Rechargeable | Yes |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| RKI Sensor | VOC (10.6 eV PID) 0-10 ppm |
| Sensor Life | 2 years |
| Range | 0-10, 20, 50 ppm |
| Unit Features | - VOC PID 10, 20, 50 ppm - Configurable Alarms - Relays and LED digital display |
| Sensor Range | VOC PID 0-10, 20, 50 ppm |
| Sensor Range | VOC PID 0-10, 20, 50 ppm |
