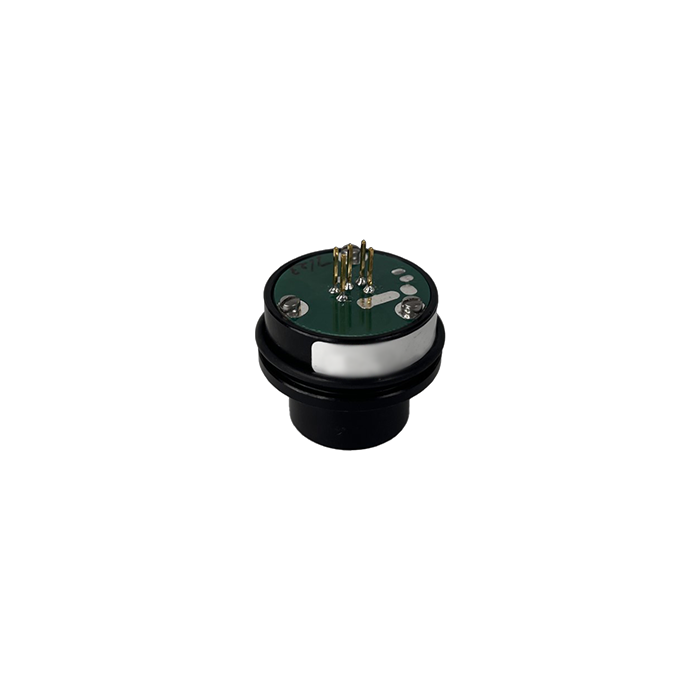

A12 Alcohol Sensor (00-0851)

E10-39 Alcohol Sensor only for the A12 Gas Transmitter.

Replaces Alcohol sensor, standard calibration range is 0-2000 ppm for each sensor.

Alcohol Info

SKU
00-0851
  $354.00

Related Products

Description / A12 Alcohol Sensor (00-0851)

Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Alcohol sensor at a standard range of 0-2000 ppm (0-2000ppm Ethanol, 0-4000ppm Methanol). Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0850 Alcohol

Alcohol Information





All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

**Calibration Service Request Form **

Calibration Costs:

Calibration costs do vary, see below to get an estimate:

Calibration Fee: $150

Analyzer Calibration Fee: $300

PM Calibration Sensor Fee: $330

Genie Calibration Fee: $265

ATI Calibration Fee: $205

** note that prices are subject to change per labor and parts required.

More Information

Manufacturer ATI
Gas Alcohol
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-2000 ppm
Minimum Range 0-500 ppm
Maximum Range 0-2000 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
