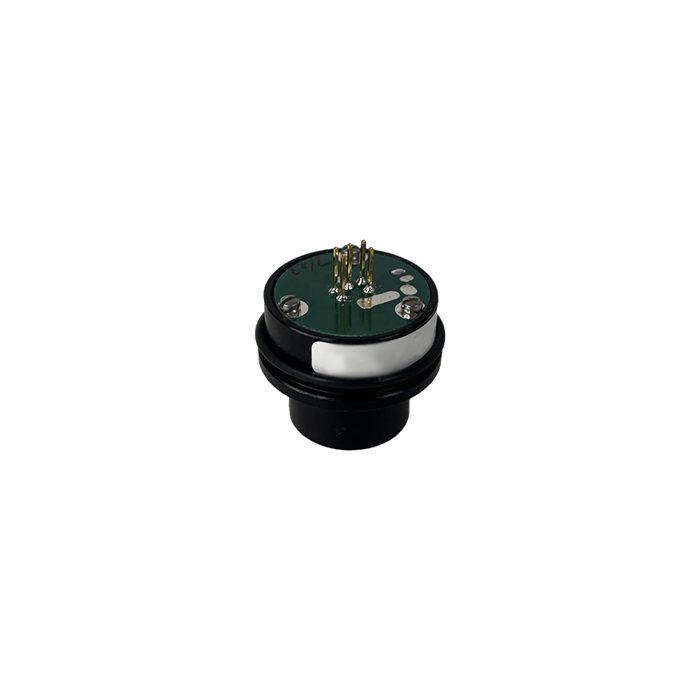

A12 ETO/Formaldehyde Sensor (00-0869)

E10-37/38 ETO/Formaldehyde Gas Sensor only for the A12 Gas Transmitter.

Replaces Ethylene Oxide or Formaldehyde sensor, calibration range is 0-20 ppm for each sensor.

Formaldehyde Information

SKU
00-0869
  $354.00

Related Products

Description / A12 ETO/Formaldehyde Sensor (00-0869)

Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Ethylene Oxide or Formaldehyde sensor, standard calibration of  0-20 ppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need:
00-0854 Ethylene Oxide
00-0855 Formaldhyde

Formaldehyde Information





All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

**Calibration Service Request Form **

Calibration Costs:

Calibration costs do vary, see below to get an estimate:

Calibration Fee: $150

Analyzer Calibration Fee: $300

PM Calibration Sensor Fee: $330

Genie Calibration Fee: $265

ATI Calibration Fee: $205

** note that prices are subject to change per labor and parts required.

More Information

Manufacturer ATI
Gas Ethylene Oxide (ETO), Formaldehyde (CH2O)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-20 ppm
Minimum Range 0-20 ppm
Maximum Range 0-200 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
