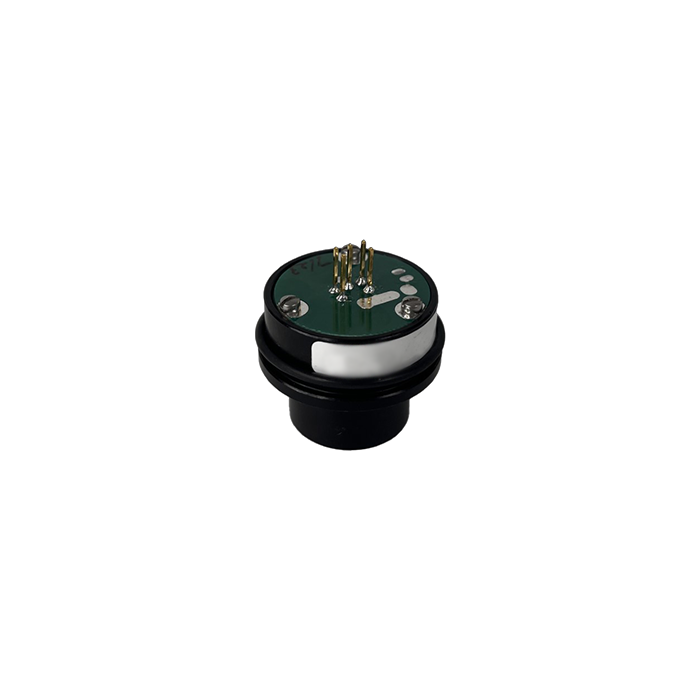

A12 Hydrogen Cyanide Sensor (00-0270 or 00-1332)
E10-22 & E10-22S Hydrogen Cyanide Gas Sensor only for the A12 Gas Transmitter.
Replaces Hydrogen Chloride sensor, standard calibration range is 0-20 ppm for each sensor.
- SKU
- 00-0270 00-1332
Description / A12 Hydrogen Cyanide Sensor (00-0270 or 00-1332)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Hydrogen Cyanide sensor at a standard range of 0-20 ppm. Please note that this sensor need to be calibrated on-site.
Please choose if you need this sensor for the Old Style (00-0270) or New Style Senor (00-1332)
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-1331 Hydrogen Cyanide
If you need th Sensing Module WITH an Auto-Test Generator, then you need: 00-1351 Hydrogen Cyanide
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Hydrogen Cyanide (HCN) |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Standard Range | 0-20 ppm |
| Minimum Range | 0-10 ppm |
| Maximum Range | 0-200 ppm |
| Monitor sensor fits | A12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -30º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
