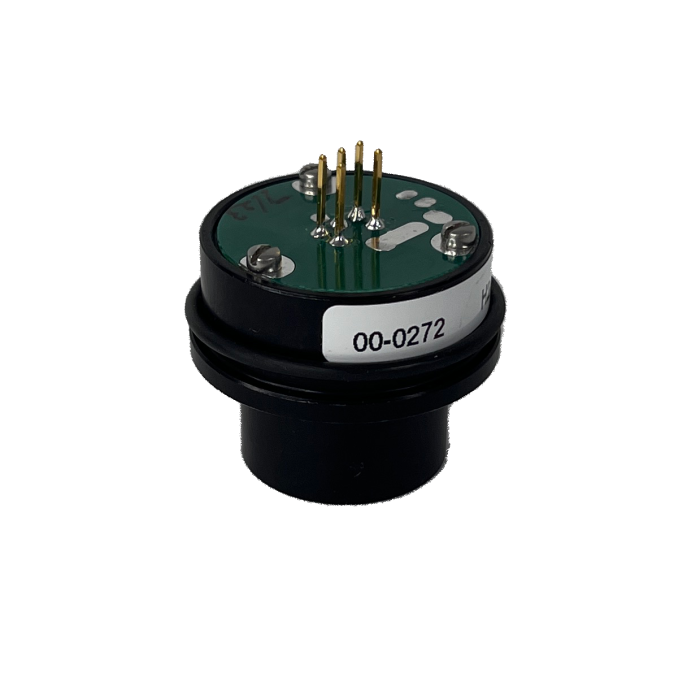

A12 Hydrogen Sensor (00-0272)
A12 Hydrogen Sensor (00-0272)
E10-18 Oxygen Sensor only for the A12 Gas Transmitter.
Replaces Oxygen sensors, standard calibration range is either 0-1000ppm or 4% for each sensor.
- SKU
- ATI 00-0272
$234.00
Description / A12 Hydrogen Sensor (00-0272)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Hydrogen sensors at a standard range of 0-1000ppm or 4%. Please note that this sensor need to be calibrated on-site.
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need:
00-0225 - Hydrogen 0-1000 ppm
00-0260 - Hydrogen 0-4%
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Hydrogen (H2) |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Standard Range | 0-1000ppm OR 0-4% |
| Minimum Range | 0-500ppm OR 0-2000ppm |
| Maximum Range | 0-2000ppm OR 0-10% |
| Monitor sensor fits | A12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -30º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
