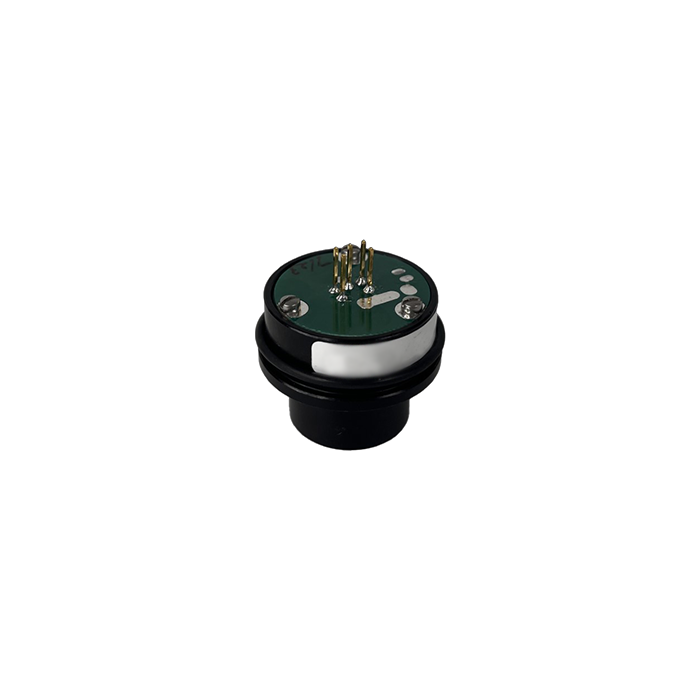

A12 Nitric Oxide Sensor (00-0275)

E10-25 Nitric Oxide Gas Sensor only for the A12 Gas Transmitter.

Replaces Nitric Oxide sensor, calibration range is either 0-50ppm or 0-1000 ppm for each sensor.

Nitric Oxide Information


Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Nitric Oxide sensor at a either standard calibration of 0-50 ppm or 0-1000pppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need either:
00-0236 Nitric Oxide 0-50ppm
00-0996 Nitric Oxide 0-1000ppm

Nitric Oxide Information

More Information
Manufacturer ATI
Call For Price No
Gas Nitric Oxide (NO)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-50 ppm
Minimum Range 0-25 ppm
Maximum Range 0-500 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
