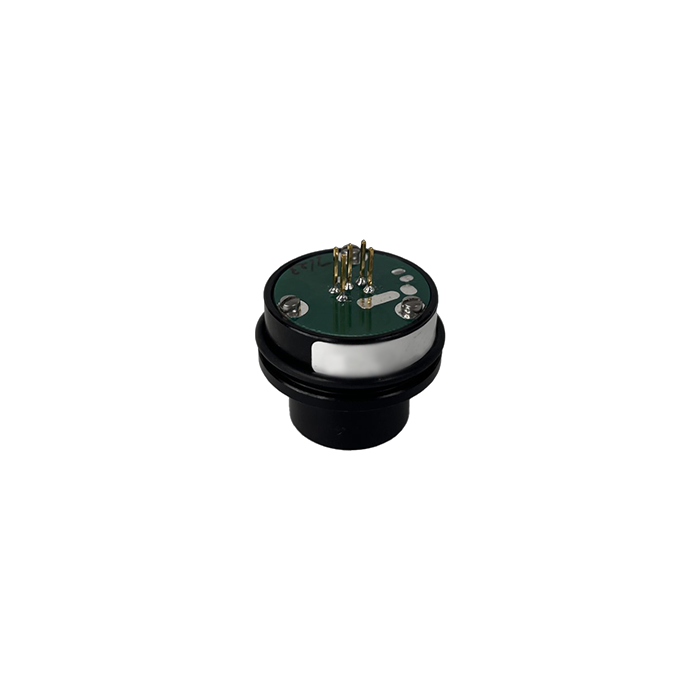

A12 Silane Sensor (00-0277)

E10-xx SilaneGas Sensor only for the A12 Gas Transmitter.

Replaces Silane sensor, calibration range is 0-10 ppm for each sensor.

Silane Information


Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Silane sensor, standard calibration of  0-10pppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0246 Silane

Silane Information

More Information
Manufacturer ATI
Call For Price No
Gas Silane (SiH4)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-10 ppm
Minimum Range 0-1 ppm
Maximum Range 0-100 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
