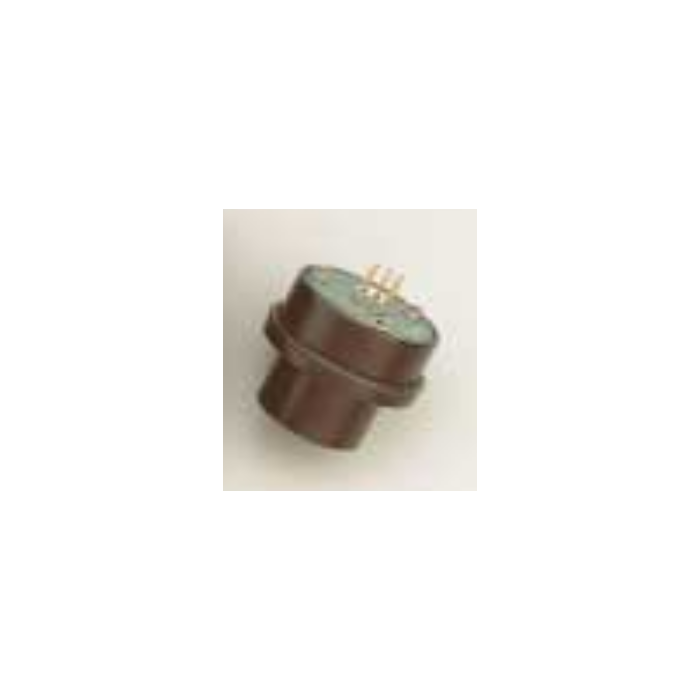

A12 Sulfur Dioxide Sensor (00-0266)

E10-27 sulfur Dioxide Sensor only for the A12 Gas Transmitter.
Replaces Sulfur Dioxide sensor, standard calibration range is 0-20 ppm for each sensor.
- SKU
- 00-0266
Description / A12 Sulfur Dioxide Sensor (00-0266)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Sulfur Dioxide sensor at a standard range of 0-20 ppm. Please note that this sensor need to be calibrated on-site.
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0239 Sulfur Dioixde
If you need the Sensing Module WITH an Auto-Test Generator, then you need: 00-0240 Sulfur Dioxide
More Information
Manufacturer | ATI |
---|---|
Gas | Sulfur Dioxide (SO2) |
Sensor Type | Electrochemical Cell |
Accuracy | ± 5% of value |
Standard Range | 0-20 ppm |
Minimum Range | 0-10 ppm |
Maximum Range | 0-200 ppm |
Monitor sensor fits | A12 |
Sensitivity | 1% of sensor module range |
Operational Temperature Range | -30º to +55ºC |
Operational RH Range | 0-95% Non-condensing |
Warranty | 1 Year |
