Ammonia Puffer Test Gas Generator

Bump Tester for Ammonia

Ammonia Information

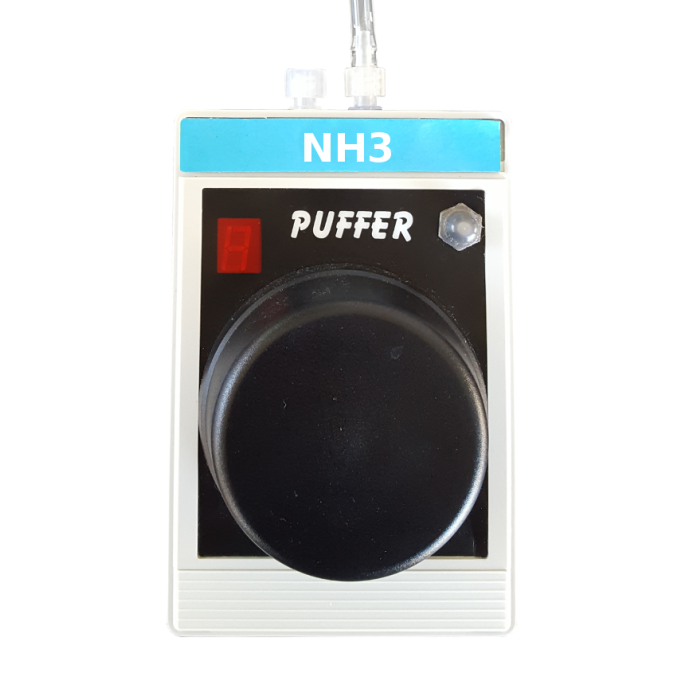

The Puffer is a portable instrument that can be used to produce a small amount of sample gas on site to verify the operability of the your gas monitor.  The puffer contains a small ammonia gas generator and then a simple hand pump is used use to move the gas through the tube to deliver ammonia gas to the gas monitor that you need to test.


How To Use:

1. Push the activation switch and hold until the % life indicator flashes 3 times.

Holding the O3 Puffer activation switch

2. Release the switch and wait until the indicator stops flashing (about 45 seconds).

3. Once it stops flashing, the sample gas is ready to be idspensed.

4. Either:

a. push the black rubber bladder on the front of the unit to propel the gas through the tube towards the sensor that needs to be tested.

Push the black rubber bladder to push the gas out of the unit


b. For monitors with internal pump, the plug next to the outlet tube can be removed (see image below) and connect the sample wand to the exposed port.  The black rubber bladder does NOT need to be pushed.  The gas detector's pump will draw air from the puffer.

Removing the cap of the sample port on the O3 Puffer

Replacement Cell for the Puffer:

Downloadable Content:

Puffer Information Sheet

Puffer Manual

Ammonia Information

More Information
Manufacturer ATI
Call For Price No
Audible Alarm No
Sensor Range

No Range

Unit Features

- Bump Tester for Ammonia

- Simple Pump

- Easy to use

Warranty 1 Year
Monitor Type A14/A11, C16, D12, D12-IR, F12, S-200, S-300, S-500, S-900, S930, S940
