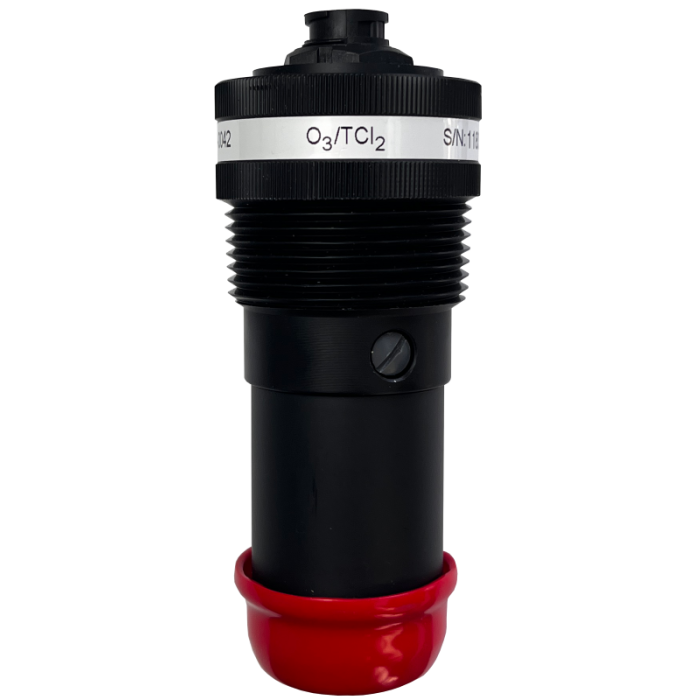

ATI Dissolved Ozone Sensor (00-0042)

The ATI 00-0042 Replacement Membrane Assembly is an essential component for maintaining the precision and reliability. Engineered specifically for ATI’s Q46 dissolved ozone monitors, this replacement membrane ensures consistent, accurate readings of dissolved ozone levels across a range of applications, including water treatment, food processing, and environmental monitoring.

SKU: ATI 00-0042

$898.00

Description / ATI Dissolved Ozone Sensor (00-0042)

Applications:

Ideal for use in industries requiring accurate ozone monitoring, such as:

- Water Treatment Facilities – Monitor and manage dissolved ozone levels for safe and effective water purification.

- Food and Beverage Processing – Ensure high standards in sanitation and quality with precise ozone control.

- Environmental Monitoring – Track ozone levels in water bodies for environmental safety and compliance.

How to Change the Membrane and Electrolyte Solution in the Q46 and Q46 Series:

Step 1: Remove the Sensor from the Flow Cell

The Q46 and Q45 sensors are typically installed in a constant-head flow cell, ensuring stable readings. Start by:

Unplugging the Electrical Connector: Located at the back of the sensor.
Removing the Sensor: Pull it out gently, and the O-ring seal will release it smoothly.

With the sensor in hand, let’s move on.

Step 2: Replace the Membrane

To access the membrane and solution:

Unscrew the Ring and Remove the Membrane: Take off the ring, discard the old membrane, and empty any remaining electrolyte.
Prepare the New Membrane: Retrieve a new membrane from its container, removing the yellow protective paper.
Insert the New Membrane: Place the clear membrane inside the ring and secure it by threading the ring and cap back together until fingertight.

Step 3: Add Electrolyte Solution

With the new membrane in place:

Fill the Cap with Electrolyte Solution: Fill to the bottom of the threads.
Prepare the Sensor for Reassembly: Remove the small side screw for easier reattachment.

Step 4: Reassemble the Sensor and Cap

To ensure the sensor functions correctly:

Attach the Cap at a 45° Angle: Thread the sensor and cap together, allowing some electrolyte to spill out—this is normal.
Tighten Until Sensor Contacts the Membrane: Tighten until the sensor tip just touches the membrane.
Replace the Small Plastic Screw: Reinsert and gently tighten the screw.

Step 5: Reinstall the Sensor

Once assembled:

Reconnect to the Flow Cell: Press the sensor back into the O-ring seal.
Plug in the Electrical Connector: Reattach the connector.

Warm-Up and Calibration Tips

After changing the electrolyte solution, allow the sensor a few hours to warm up before calibration. Trying to calibrate during warm-up may result in shifting readings. In some setups, replacing the electrolyte solution and membrane alone restores calibration without adjustments.

Watch our video tutorial for a full demonstration!

Replacement Parts for the Q45/Q46

Product	Description	Price
ATI Dissolved Ozone Sensor (00-0042)		$898.00

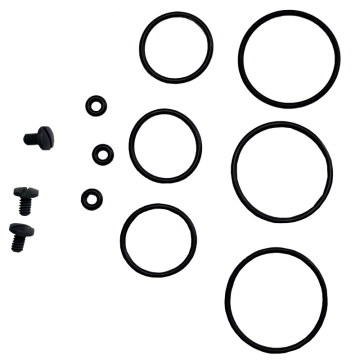

ATI Q46R Spare Parts Kit (05-0004)		$27.00
Membranes for Q46H/64 & Q45H/64		$25.00
Ozone Electrolyte Solution		$35.00
