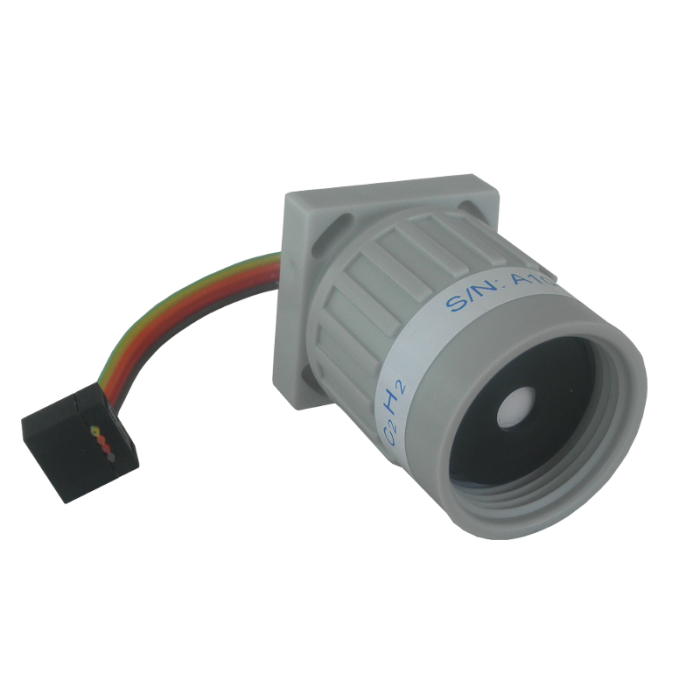

ATI Low Range Chlorine Dioxide Oxidant Replacement Sensor
Low range Chlorine Dioxide oxidant replacement sensor for ATI A14/A11 and B12 gas detectors
Place your order today and we will ship it as soon as possible.
- SKU
- ATI 00-3891
Description / ATI Low Range Chlorine Dioxide Oxidant Replacement Sensor
Replacement sensor for ATI A14/A11 or B12 Gas Detectors.
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Chlorine Dioxide (ClO2) |
| Unit Features | - Low Range Chlorine Dioxide Oxidant Sensor - 5 ppm - Replacement sensor for ATI A14/A11 & B12 Gas Detectors |
| Sensor Type | GSS (Gas Sensitive Semiconductor) |
| Range | 0-5 ppm |
| Maximum Exposure | 5 ppm |
| Minimum Detection Limit | 1 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Resolution | 0.01 ppm |
| Standard Range | 5 ppm |
| Minimum Range | 0.01 ppm |
| Maximum Range | 5 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 0.1 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
