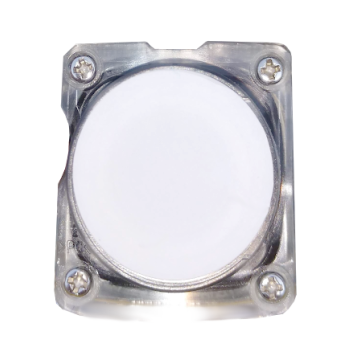

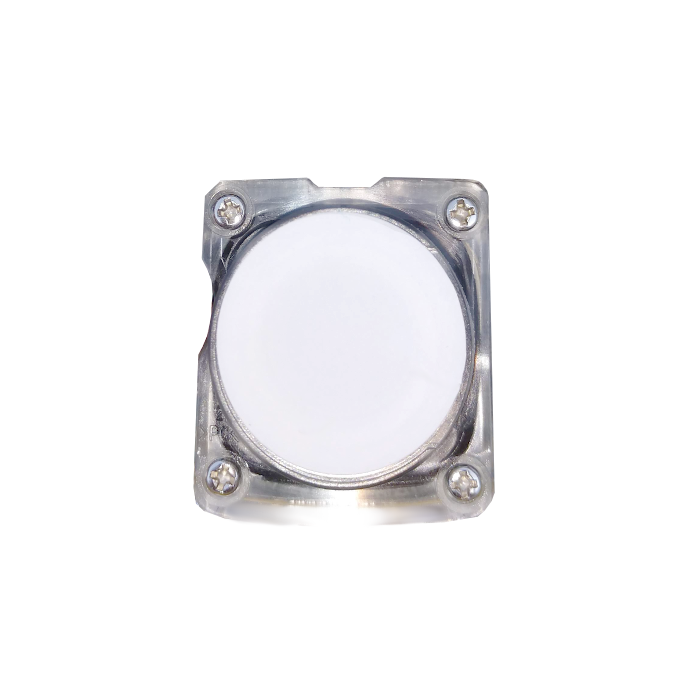

BW Solo replacement H2S Sensor (extended range)
The Replacement H2S extended range sensor is used to measure hyrdogen sulfide levels from 0-500ppm.
To be used in the BW Solo H2S extended.
- SKU
- BW Solo Repl H2S Extended Range
Description / BW Solo replacement H2S Sensor (extended range)
Features:
The BW Solo 1-Series sensors offer a fast response time, reliable performance, and long life even in extreme environments. Due to their small size, gas diffuses into them quickly, allowing them to respond to fluctuations in gas levels as quickly as they occur. The 1-Series sensors are built to last up to two years and come with a 1-year warranty. Sensors can be replaced with minimal effort and without exposing the internal components of your BW Solo.
Sensor Replacement Instructions:
1. Power down your detector
2. Use the calibration cap to remove the front of the BW solo
3. Carefully Peel off the sensor filter
4. Use a Philip’s head screwdriver to remove the four screws securing the sensor cover
5. Gently remove the old sensor and sensor cover
6. Push the top of the sensor with your thumb until it pops down out of the sensor cover
7. Remove the o-ring from the sensor cover
8. Line up the winged corner of the replacement sensor with the winged corner of the cover
9. Press the sensor cover over the sensor only halfway
10. Flip the unit over and fit the o-ring over the sensor making sure all four corners are secured
11. Place the sensor and cover back into the solo lining up with the groove on the alarm side
12. Replace the screws
13. Replace the sensor filter
14. Snap the cover back into place
Full List of Honeywell BW Solo Replacement Sensors:
| Gas Type | Product name | Measuring Range | Price (non-wireless) | Price(wireless) |
|---|---|---|---|---|
| Ammonia (NH3) | PCB NH3 | 0-100ppm | $399 | $434 |
| Ammonia (NH3) extended range | PCB NH3 extended | 0-1000 ppm | $417 | $452 |
| Carbon monoxide (CO) | PCB CO | 0-2000 | $270 | $305 |
| Carbon monoxide (CO) H2 resistant | PCB CO H2 resistant | 0-2000ppm | $329 | $364 |
| Chlorine (Cl2) | PCB Cl2 | 0-50 ppm | $329 | $364 |
| Chlorine dioxide (ClO2) | PCB ClO2 | 0-1ppm | $329 | $364 |
| Ethylene Oxide (ETO)(C2H4) | PCB ETO | 0-100 ppm | $452 | $487 |
| Hydrogen (H2) | PCB H2 | 0-1000 ppm | $455 | $490 |
| Hydrogen cyanide (HCN) | PCB HCN | 0-100 ppm | $329 | $364 |
| Hydrogen sulfide (H2S) | PCB H2S | 0-200 ppm | $270 | $305 |
| Hydrogen sulfide (H2S) extended range | PCB H2S extended | 0-500 ppm | $259 | $294 |
| Nitric oxide (NO) | PCB NO | 0-250 ppm | $329 | $364 |
| Nitric dioxide (NO2) | PCB NO2 | 0-100 ppm | $329 | $364 |
| Oxygen (O2) | PCB O2 | 0-30%v/v | $270 | $305 |
| Oxone (O3) | PCB O3 | 0-1 ppm | $557 | $592 |
| Phosphine (PH3) | PCB PH3 | 0-5 ppm | $329 | $364 |
| Sulfur dioxide (SO2) | PCB SO2 | 0-100ppm | $329 | $364 |
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | Honeywell / BWT |
|---|---|
| Gas | Hydrogen Sulfide (H2S) |
| Sensor Type | GSS (Gas Sensitive Semiconductor) |
| Range | 0-500 ppm |
| Sampling Method | Fan |
| Operational Temperature Range | -60 to 40C / -40 to 140F |
| Warranty | 1 Year |
