Chlorine ChromAir Badge (380004-10)

ChromAir chemical exposure badges are a color indicating making them easy to use and perfect for monitoring personnel safety.

Quantity = 10 badges  *clips are NOT included*

Note: we are not able to ship these badges outside of the US

Chlorine Information

$161.00

Color change for Chlorine is from yellow to orange.

The ChromAir Chlorine badge may be used for personnel or area monitoring for exposure times ranging from 15 minute to 48 hours.



Introduction

Chlorine is a greenish-yellow gas with a pungent, irritating odor. Generally, chlorine is a potent respiratory system irritant. Mild exposures to chlorine cause burning of eyes, nose and mouth. Exposure to concentrations as high as 1000 ppm is likely to be fatal after a few deep breaths. The NIOSH PEL for chlorine is 0.5 ppm (ceiling), whereas the OSHA PEL is 1ppm (ceiling).

Chlorine is an important chemical commodity widely used in the production of safe drinking water. It is also extensively used in the production of paper products, petroleum products, textiles, dyestuffs, chlorinated solvents, etc.



Principle of Operation

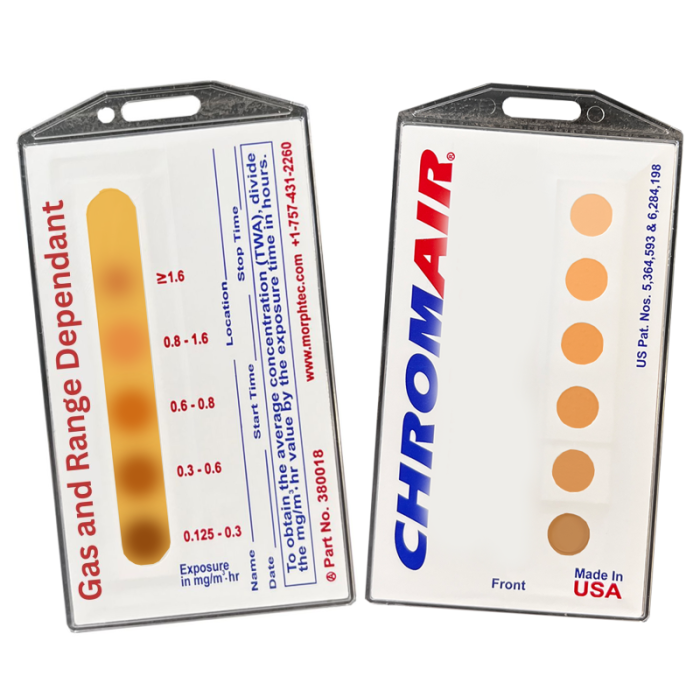

The ChromAir passive monitor is a patented direct-read autogenic exposimeter. The device is constructed from six cells attached on one side to a flat indicator layer and on the other side to a series of different diffusive resistances. Chlorine gas diffuses to the cells through the different diffusive resistances and reacts with the indicator layer, producing color change from yellow to orange. The color produced on the indicator layer is a direct measure of the exposure dose. Visual color comparison is achieved by observing the formation of the orange threshold color on the individual cell and reading the corresponding exposure dose.

Direct Read Color Comparator Safety Monitor

Pictured above is the additional color comparator that is used for higher resolutions and accuracy (available for Carbon Monoxide, Formaldehyde, Mercury).



Operating Instructions

1. Remove the pouch from refrigerator and allow it to warm to room temperature.

2. Remove the badge from its protective pouch.

3. Enter all pertinent information on the I.D. label before monitoring is started (i.e. name, location, date and start time).

4. For personnel monitoring, attach the badge near the user's breathing zone (i.e. collar) with the front side exposed to the surrounding atmosphere.

5. For area monitoring, attach the badge to a stand and mount in a centralized area with the front side exposed to the surrounding atmosphere.

6. Check the back side of the badge periodically to determine the exposure dose (ppm•hr).

7. To read the badge, locate the highest level cell with orange threshold color.

8. To read the badge with the color comparator, after sampling, return badge to its original pouch and let stand for one hour to allow complete color development. Read the badge no later than 24 hours after exposure.

9. To obtain the average concentration (ppm) in the surrounding atmosphere, divide the exposure dose (ppm•hr) by the exposure time in hours.

EXAMPLE: If the sampling time is 2 hours and the badge reads 4 ppm•hr, the average concentration is determined by: 4 ppm•hr Therefore the average concentration is 2 ppm.



Storage

The ChromAir chlorine monitor should be refrigerated in its sealed bag at all times.



Sampling Parameters

Color Change

yellow to orange

Exposure range (Badge)

0.4 - >13 ppm•hr

Maximum recommended sampling time

2 days

Minimum recommended sampling time

15 minute

Relative humidity range

33% - 85%

Face velocity range

5 - 150 cm/sec

Temperature range

10ºC - 35ºC (59ºF - 95ºF)

Mean coefficient of variation

+/- 10.6

Bias at ambient conditions

 -3.7 %

Light effect - UV (direct sunlight)

no effect

Light effect - visible

no effect

Refrigerated shelf life

 2 year



Downloads

380004 Manual

Chlorine Information

More Information
Manufacturer Morphix
Call For Price No
Gas Chlorine (Cl2)
Standard Range .4 - 13 PPM
Operational Temperature Range 10ºC - 35ºC (59ºF - 95ºF)
Operational RH Range 35% - 85%
Audible Alarm No
Calibration N/A
Sensor Life 48 Hours
Range 0.4-13 ppm-hr
Sensor Range

0.4-13 ppm-hr
