Eagle2 - Two Gas

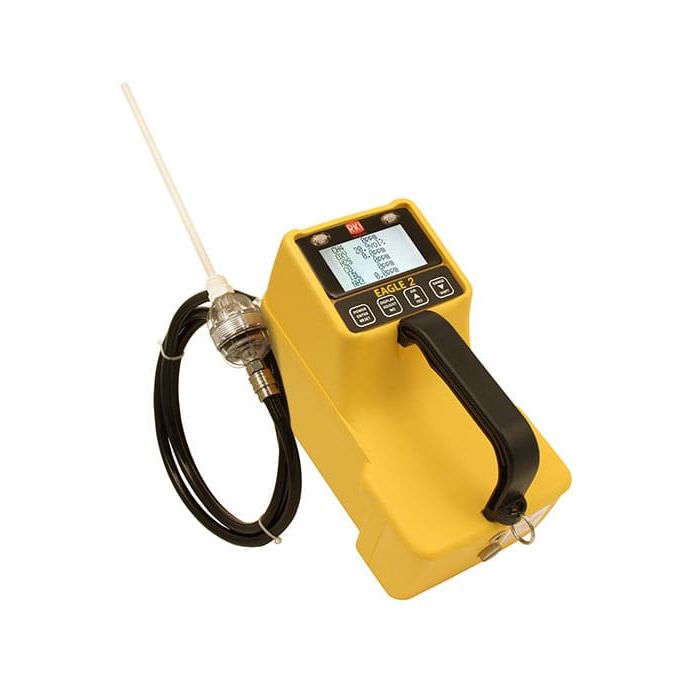

The EAGLE 2 is the solution for just about any portable gas monitoring situation. Equipped with features that are not available on competitive units, the EAGLE 2 is a powerful instrument that does more than just offer the standard confined space protection for LEL, O2, H2S and CO. The EAGLE 2 offers easy access to controls such as auto-calibration, alarm silence, demand zero, peak hold, and methane elimination. Each channel has two alarm levels plus TWA and STEL alarms for toxic channels. The two alarm levels are user adjustable and can be latching or self resetting.
As low as
$2,295.00
Benefits:
Versatile Gas Monitoring: The EAGLE 2 is designed to address a wide range of portable gas monitoring situations, making it suitable for various applications.
Enhanced Features: It offers features that are not available in competitive units, making it a powerful and advanced instrument.
Comprehensive Gas Detection: The EAGLE 2 provides protection against multiple gases, including LEL, O2, H2S, CO, VOCs, CH4, and more.
User-Friendly Controls: Users have easy access to controls for functions like auto-calibration, alarm silence, demand zero, peak hold, and methane elimination.
Multiple Alarm Levels: Each gas channel has two alarm levels, which are user-adjustable and can be configured as latching or self-resetting.
Toxic Gas Alarms: The EAGLE 2 includes TWA and STEL alarms for toxic channels, enhancing safety in hazardous environments.
Distant Sampling Capability: The instrument features a strong internal pump with the ability to draw samples from distances of up to 125 feet, allowing for quick response and recovery in remote sampling locations.
Long Battery Life: It can operate continuously for over 18 hours on alkaline batteries or 20 hours on NiMH, ensuring extended usage in the field.
Accessory Options: Various accessories are available to meet specific application needs, including sample hoses, float probes for tank testing, and dilution fittings.
Data Logging: Data-logging is a standard feature for all sensors, allowing for the recording and analysis of monitoring data.
Compliance with EPA Method 21: The EAGLE 2 is ideal for performing EPA Method 21 fugitive emission monitoring, meeting the requirements outlined in Sections 6 and 8 of Method 21. This makes it suitable for applications involving the determination of VOC leaks from process equipment, ensuring compliance with environmental regulations.
Standard Accessories:
- Shoulder strap
- Alkaline batteries
- Hydrophobic probe
- 5 foot hose
- Internal hydrophobic filter
Special Features:
- Low flow alarm shuts pump off to avoid damage to instrument.
- Hydrophobic filter disc in probe.
- Internal hydrophobic filter.
- Single gas calibration capability.
- Methane elimination feature for environmental applications.
- Security Password protected.
- Meets EPA Method 21 protocol for fugitive emissions testing (most applications).
- Plug and play toxic sensors.
- Datalogging available for all configurations.
- Transformer gas testing version available.
Datalogging:
10 seconds = 10 hours
5 minutes = 300 hours
10 minutes = 600 hours
Video:
Quick Start:
Specifications:
| Gas: | Detection Range: | Accuracy *whichever is greater | |
| Standard Confined Space Gases: | |||
| Hydrocarbons (CH4, std) |
0 – 100% LEL 0 – 5% Vol. (CH4) 0 – 50,000 ppm |
± 5% of reading or ± 2% LEL (*) ± 50 ppm or ± 5% of reading (*)
|
|
| Oxygen (O2) | 0 – 40% Vol. |
± 0.5% O2
|
|
| Carbon Monoxide (CO) | 0 – 500 ppm |
± 5% of reading or ± 5 ppm CO (*)
|
|
| Hydrogen Sulfide (H2S) | 0 – 100 ppm |
± 5% of reading or ± 2 ppm H2S (*)
|
|
| Toxics: | |||
| Ammonia (NH3) |
0 – 75 ppm
|
± 10% of reading or ± 5% of full scale (*) |
|
| Arsine (AsH3) |
0 – 1.5 ppm
|
||
| Chlorine (Cl2) |
0 – 3 ppm
|
||
| Hydrogen Cyanide (HCN) |
0 – 15 ppm
|
||
| Phosphine (PH3) |
0 – 1 ppm
|
||
| Sulfur Dioxide (SO2) |
0 – 6 ppm
|
||
| IR Sensors: | |||
| Carbon Dioxide (CO2) |
0 – 10,000 ppm 0 – 5% Vol. 0 – 60% Vol.
|
± 5% of reading or ± 2% of full scale (*)
|
|
| Methane (CH4) |
0 – 100% LEL/ 0 – 100% Vol.
|
||
| Hydrocarbons |
0 – 100% LEL/ 0 – 30% Vol.
|
||
| PID Sensors: | |||
| VOC |
0 – 2,000 ppm 0 – 50 ppm
|
— |
|
| TC Sensors: | |||
| Methane (CH4) |
0 – 100% Vol.
|
± 5% of reading or ± 2% of full scale (*)
|
|
| Hydrogen (H2) |
0 – 10% Vol. 0 – 100% Vol.
|
||
| Hydrogen Specific: | |||
| Hydrogen (H2) |
0-100% LEL 0-40,000 ppm
|
± 5% of reading or ± 2% of full scale (*) |
|
Alarms:
| Alarms: | Alarm Method: |
| 2 Alarms per channel plus TWA and STEL alarms for toxics. The two alarms are fully adjustable for levels, latching or self reset, and silenceable. | Buzzer 95 dB at 30 cm, four high intensity LED’s. |
Common Specifications:
| Sample Method |
Powerful, long-life internal pump (over 6,000 hours) can draw samples over 125 feet. Flow rate approximately 2.0 SCFH.
|
| Display |
3 display modes: display all gases, large font-autoscroll, or large font-manual scroll. Polyurethane protected overlay. Backlight, illuminates for alarms and by demand, with adjustable time.
|
| Enclosure |
Weatherproof, chemical resistant, RFI / EMI coated high impact polycarbonate-PBT blend. Can operate in 2.0” of water without leakage. Ergonomically balanced with rugged top mounted handle. Water & dust resistant equivalent to IP64.
|
| Controls |
4 External glove friendly push buttons for operation, demand zero, and autocalibration. Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features.
|
| Languages |
Readout can display in 5 languages (English, French, German, Italian, or Spanish).
|
| Operating Temp. & Humidity |
-20°C to 50°C (-4°F to 122°F), 0 to 95% RH, non-condensing.
|
| Dimensions |
9.5” L x 5.25” W x 5.875” H
|
| Power Source |
4 alkaline or NiMH, size C batteries (Charger has alkaline recognition to prevent battery damage if charging is attempted with alkalines).
|
| Detection Principle |
Catalytic combustion, electrochemical cell, galvanic cell, infrared, Photoionization detector, and thermal conductivity.
|
Manuals:
| Manufacturer | RKI Intruments |
|---|---|
| Rental Period | Weekly |
| Description | This versatile gas monitoring system ensures safety and environmental compliance by monitoring up to six gases (PPM, % LEL, or % Vol.), employing specialized sensors like the PID for VOC detection, and using innovative technology for humidity and contamination resistance. It utilizes Infrared technology for various gas measurements and includes smart, plug-and-play toxic sensors. A powerful, long-life pump covers a range of up to 125 feet, and there's the option for methane elimination in environmental applications. The system offers impressive battery life (18 hours with alkaline, 20 hours with NiMH), complies with EPA Method 21 VOC Monitoring, and includes internal and external hydrophobic filters. It supports five languages, has an ergonomic and weather-resistant design, is intrinsically safe with CSA approval, and features standard data logging capabilities. |
| Call For Price | Yes |
| 4-20 mA Output | No |
| Field Replaceable Sensor | No |
| Min, Max, Avg | No |
| Voltage Output | None |
| Datalogging | No |
| Rechargeable | Yes |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Mobile | Fixed |
| Sampling Method | Fan |
| Unit Features | - Low flow alarm shuts pump off to avoid damage to instrument. - Multi gas calibration capability. - Methane elimination feature for environmental applications. - Security Password protected. - Meets EPA Method 21 protocol for fugitive emissions testing (most applications). - Plug and play toxic sensors. - Datalogging available for all configurations. |
| Sensor Range | Gas Dependent - Over 20 Detectable Gases |
