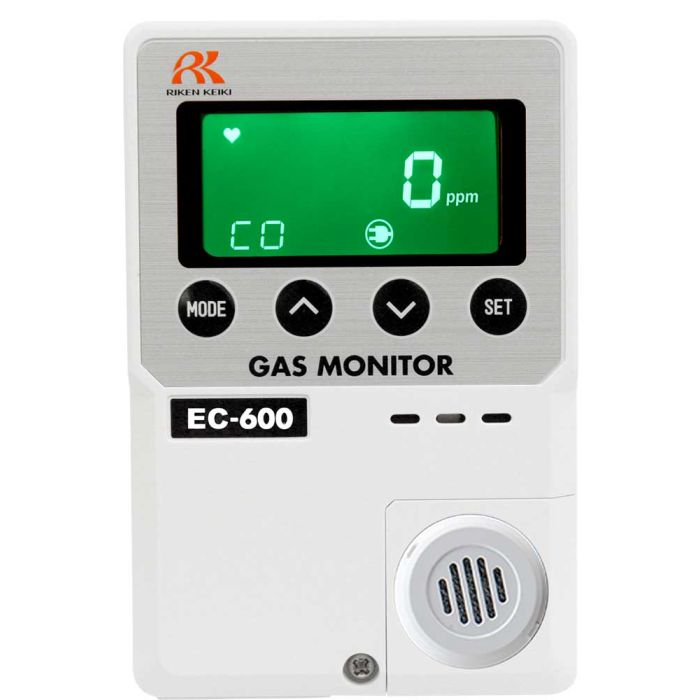

EC-600 Indoor Stand Alone Carbon Monoxide Monitor 0-150 ppm
- SKU
- EC-600
Description / EC-600 Indoor Stand Alone Carbon Monoxide Monitor 0-150 ppm
Features:
- Compact, wall mounting design
- Highly visible 3 color LED digital display
- Power cable can enter from any direction
- Stores alarm summary data
- Built in audible and visual alarms
- 115 VAC operation
- Relay outputs for annunciation of alarms
- Low cost plugin electrochemical sensor
Applications:
- Iron and steel industry
- Laboratories
- Boiler rooms
- Garages
- Vehicle service areas
- Engine testing
- Shipping / receiving docks
- Multi-occupancy residences
Specifications:
- Sensor Type: Electrochemical, infrared, catalytic bead
- Operating Voltage: Wired power (3-Wire) 12 to 35 VDC or Battery Operated
- Power Draw: 2 Watts maximum
- Protection: Power electromagnetic interference (EMI) filter, 4-20 mA surge suppression, RS-485 surge suppression
- Display Screen: 102×64 Resolution graphical LCD screen transflective (sunlight readable) with white LED backlight
- Interface: 4 Push-buttons
- Customizable Settings: 2 Individual-configurable alarm LED/relay set-point
- Output: RS-485 modbus
- Wire (analog) Output: 4-20 mA (3-Wire)
- Weight: 2 lbs
Carbon Monoxide Human Reaction:
| CO (ppm) | Human Reaction and Poisoning |
| 100 | No noticeable effect after breathing in for a few hours |
| 200 | Sight headache is felt after breathing for about 1.5 hours |
| 400-500 | A headache, nausea and dizziness ect. are caused after breathing around 1 hour |
| 500-1000 | Loss of consciousness breathing about 1 to 1.5 hours |
| 1,500 - 2,000 | A headache, dizziness, nausea will be severe after breathing for about 30 min to 1 hour and a sense will be lost |
| 10,000 | Immediate death |
Downloads:
More Information
| Manufacturer | RKI Intruments |
|---|---|
| Call For Price | Yes |
| Gas | Carbon Monoxide (CO) |
| 4-20 mA Output | No |
| Sensor | Carbon Monoxide 0-100 ppm |
| Field Replaceable Sensor | No |
| Auto Test Generator | None |
| Min, Max, Avg | No |
| Voltage Output | None |
| Datalogging | No |
| Rechargeable | Yes |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Sensor Life | 2 years |
| Range | 0-150 ppm |
| Unit Features | - Carbon Monoxide Monitor 0-150 ppm - Can be battery, or cord operated - Relays and LED digital display |
| Sensor Range | Carbon Monoxide Monitor 0-150 ppm |
| Resolution | 1 ppm |
| Integrated Relays | Yes |
| Sensor Range | Carbon Monoxide Monitor 0-150 ppm |
