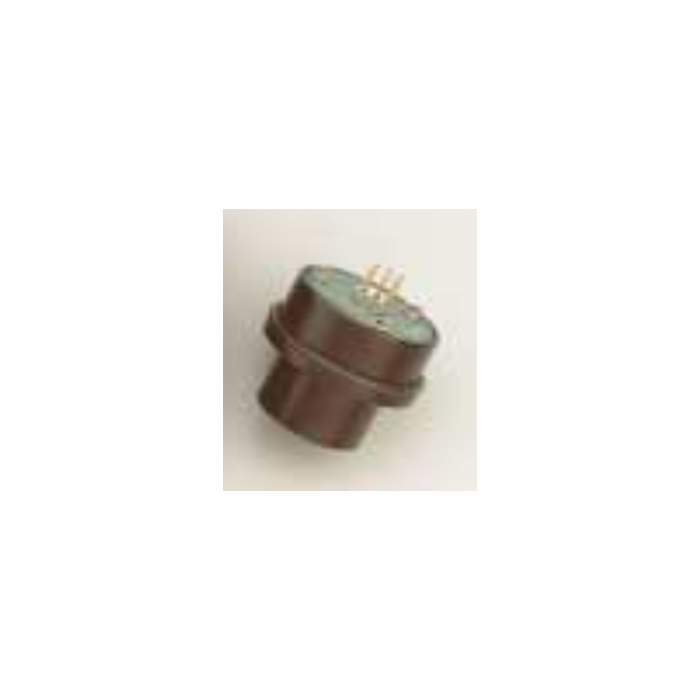

A12 Ammonia Sensor (00-0267)
A12 Ammonia Sensor (00-0267)
E10-15 Ammonia Sensor only for the A12 Gas Transmitter.
Replaces Ammonia sensor, standard calibration range is 0-100 ppm for each sensor.
- SKU
- ATI 00-0267
$280.00
Description / A12 Ammonia Sensor (00-0267)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Ammonia sensor at a standard range of 0-100 ppm. Please note that this sensor need to be calibrated on-site.
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0221 Ammonia
If you need the Sensing Module WITH an Auto-Test Generator, then you need: 00-0222 Ammonia
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Ammonia (NH3) |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Standard Range | 0-100 ppm |
| Minimum Range | 0-50 ppm |
| Maximum Range | 0-1000 ppm |
| Monitor sensor fits | A12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -30º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
