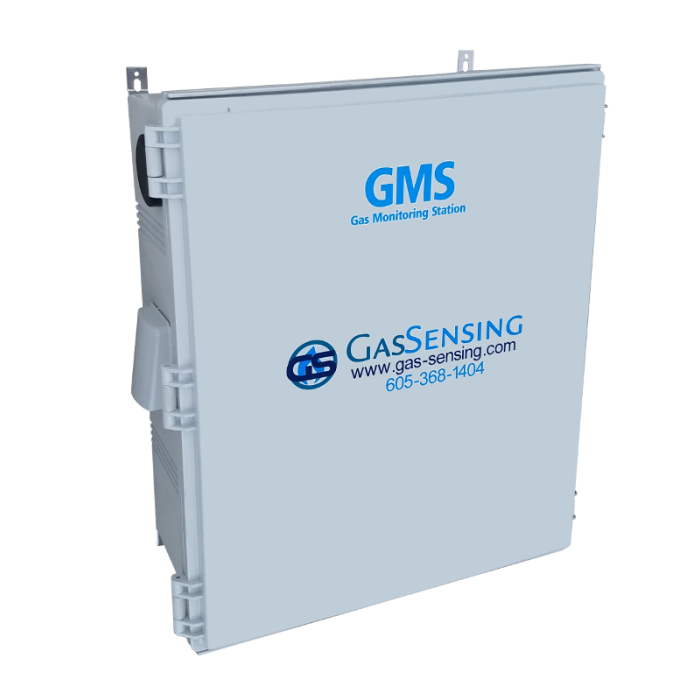

GMS-Gas Monitoring Station
Custom system that will measure the gases of your choice.
- SKU
- GMS-Gas Monitoring Station
Description / GMS-Gas Monitoring Station
Gas Monitoring Station uses Aeroqual sensors for gas measurement of a variety of air pollutants. Weatherproof enclsoure can be mounted in outdoor environment in temperatures of 0 - 40-deg F.
The table below show the vareity and options of sensors that can be used in the Gas Monitoring Stations
Set up with Wireless Monitoring and Data logging Kit
Industrial Sensors
Ethernet Gateway with cellurar modem - cell access for communications
Premiere Monitoirng Software
Online portal used from PC or mobile device to access data
System dimensions = 20" wide x 20" tall x 10" deep
System weight = 20 lbs
Requires 120 VAC power at 5 amps
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Rental Period | Weekly |
| Gas | Carbon Monoxide (CO), Nitrogen Dioxide (NO2), Ozone (O3), Particulate Matter (PM) |
| 4-20 mA Output | No |
| Field Replaceable Sensor | Yes |
| Min, Max, Avg | No |
| Voltage Output | 0-5 V |
| Datalogging | No |
| Rechargeable | No |
| Field Replaceable Battery | No |
| Warranty | 6 Month |
| Calibration | Annually |
| Range | Gas Dependent |
| Unit Features | -Wide Variety of Gas Sensors Available -Weatherproof Enclosure -Enclosure Can Be Mounted |
| Sensor Range | Gas Dependent |
| Sensor Range | Gas Dependent |
