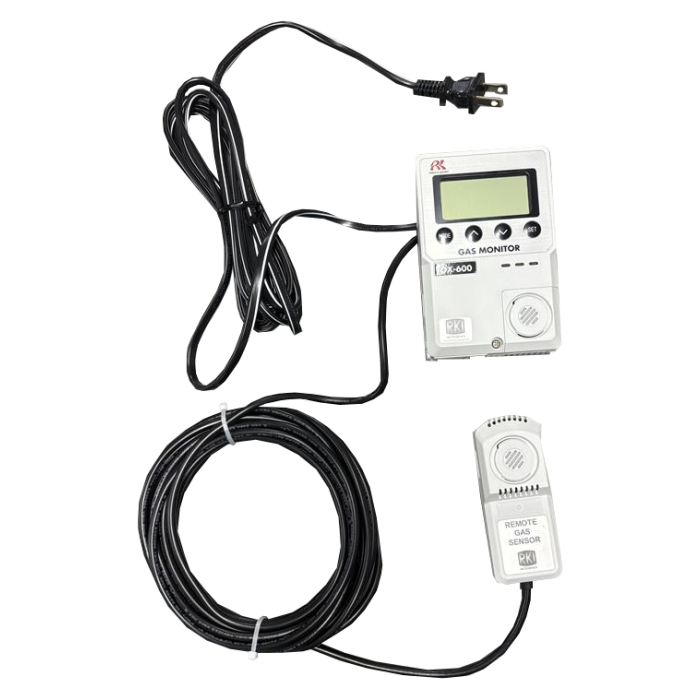

OX-600 Indoor Stand Alone Oxygen Monitor 0-25%
OX-600 Indoor Stand Alone Oxygen Monitor 0-25%
The OX-600 is an indoor, standalone monitor that detects Oxygen (O2) with a range of 0-25.0 % volume with 0.1% increments. It’s sleek, low-profile design is equipped with a unique tri-color display, which changes color as oxygen levels reach each alarm level.
The OX-600 has 2 preset alarms, and comes ready to operate with a simple wall mount bracket and 10 foot power cord. It is capable of operating with three different power options; 115 VAC, 24 VDC or AA batteries.
If Oxygen is present, the user is notified by an audible alarm tone and the multicolored LED digital display.
- SKU
- OX-600
Description / OX-600 Indoor Stand Alone Oxygen Monitor 0-25%
Features:
- Operates with or without a controller
- Range of 0-25.0 % volume with 0.1% increments
- Tri-color visual alarm display
- 2 preset alarms; Green=Normal, Yellow=Alarm 1, Red=Alarm 2
- Large easy to read digital display
- Three power options: 115 VAC, 24 VDC, or 2 AA batteries
- Operates up to 1 year on one set of AA batteries
- Pressure compensation eliminates false alarms caused by pressure change
- Remote mount sensor cable available
Applications:
- Laboratories
- Cryogenic environments
- Clean rooms
- Industrial gas facilities
- Gas storage rooms
- Indoor monitoring
- Iron and steel industry
- Warehouses
- Tunnels and garages
- Vehicle service areas
Specifications:
- Detection Principle: Galvanic cell
- Sampling Method: Diffusion or remote sampling method with optional extender cable
- Interface: 4 Push-buttons
- Weight: 2 lbs
Oxygen Human Reaction:
| Oxygen | Human Reaction and Poisoning |
| 23.5% | OSHA limit for increased levels of oxygen |
| 20.9& | Oxygen content in normal air |
| 19.5-12% | Increased pulse and respiration |
| 12-10% | Disturbed respiration, fatigue, faulty judgement |
| 10-6% | Nausea, vomiting, inability to move, loss of consciousness and death |
| 6-0% | Convulsions, cardiac arrest and death |
Downloads:
More Information
| Manufacturer | RKI Intruments |
|---|---|
| Gas | Oxygen (O2) |
| 4-20 mA Output | No |
| Sensor | Oxygen 0-25% |
| Field Replaceable Sensor | No |
| Auto Test Generator | None |
| Min, Max, Avg | No |
| Voltage Output | None |
| Datalogging | No |
| Rechargeable | Yes |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| RKI Sensor | Oxygen (O2) 0-25% Vol |
| Calibration | Annually |
| Sensor Life | 2 years |
| Range | 0-25% |
| Unit Features | - Oxygen Monitor 0-25% - Can be battery, or cord operated - Alarms and LED digital display |
| Sensor Range | Oxygen Monitor 0-25% |
| Resolution | 0.1 vol% |
| Integrated Relays | No |
| Sensor Range | Oxygen Monitor 0-25% |
