Wireless Monitoring & Data logging Kit

Gas Sensing offers a Remote Data Logging solution that works with our gas monitors to track air quality in real time—anywhere, anytime. Get notified instantly if gas levels reach unsafe limits.

SKU
SF Item

Customizable Options:

  $150.00

Related Products

Description / Wireless Monitoring & Data logging Kit

Easy Integration:

Most of our air quality monitors feature 4-20 mA or 0-5 VDC outputs. The logging interface connects directly to these signals and makes the data accessible remotely.

- Knowledge of gas concentrations anytime, from anywhere by simply opening our app on a smartphone.

- Free email and SMS text message alerts for alarming situations.

- 24/7 data logging to view trends over a given amount of time.

- No monthly fees.



Choose from:

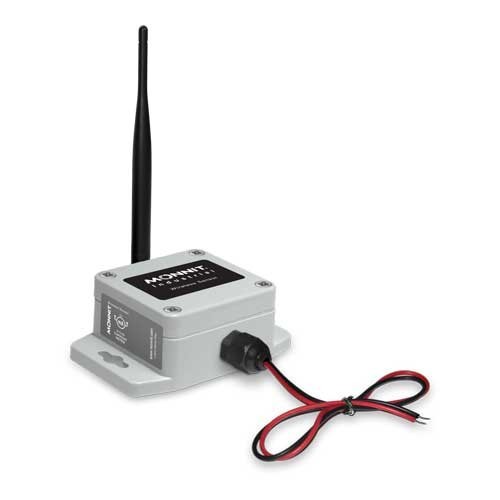

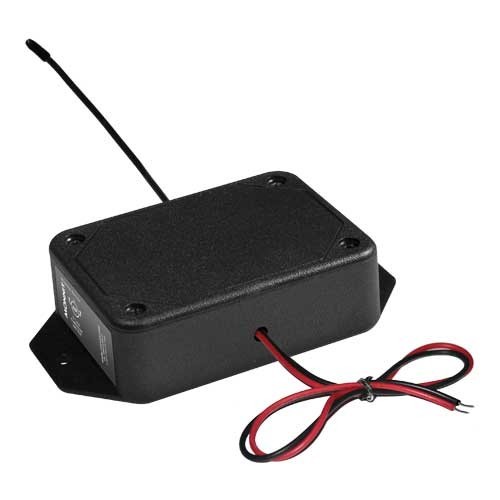

- Standard enclosure -  Plastic Enclosure, uses 2 Replaceable AA 1.5V Batteries, 250 - 300 ft. non-line-of-sight device range.

- NEMA 4X industrial enclosure - IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure, uses replaceable 3.6V 1800mAH Battery, 300 - 350 ft. non-line-of-sight device range.





Wireless Communication:

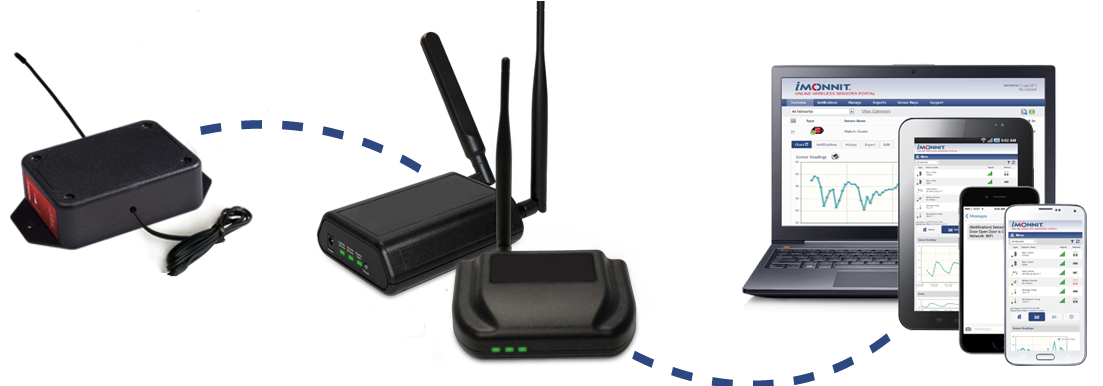

The sensors transmit data from the Air Quality Monitor via radio frequency to an Ethernet gateway connected to an internet-enabled network. The wireless range reaches 2,000+ feet, even through 18+ walls.







Data is then sent securely for real-time and historical viewing.

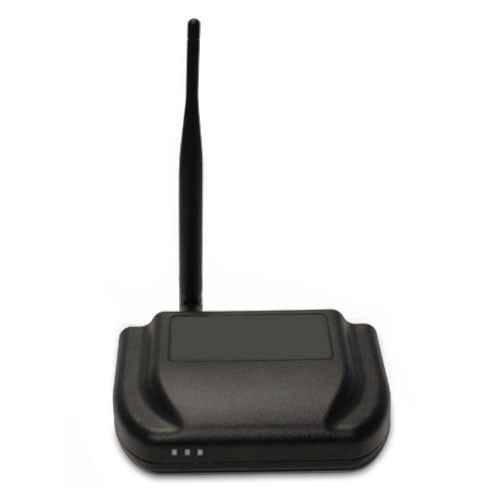

Gateway:

The device used to recieve the gas monitor concentrations and send them to the online portal for remote monitoring.

Ethernet - This gateway communicates to the internet via Ethernet protocol. This is best if there is a Local Area Network with an internet connection.

wireless ozone sensor gateway

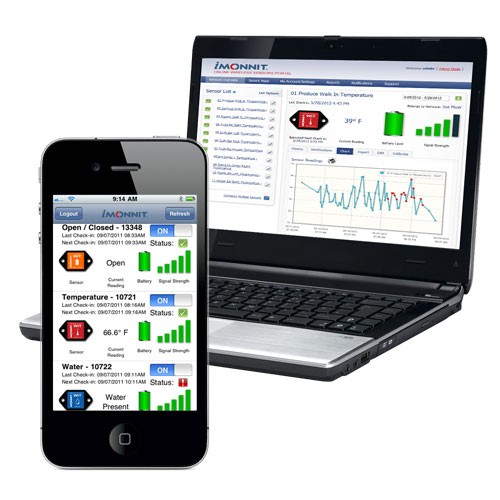

Flexible Software Options:

We offer two software platforms and two sensor packages—supporting up to 6 or 12 sensors per gateway.

Premiere Online Portal

- Cloud-based access

- View data from smartphone, tablet, or PC

- Logging frequency: every 10 minutes

- Ideal for remote and long-term monitoring



Express Software (Local PC)

- Stores data directly on your PC

- Logging frequency: every minute

- Great for users needing local control and detailed data



Compatibility and Setup:

Our Remote Data Logging solution can be ordered in two ways:
- For use with existing gas monitors you already own that provide a 4-20 mA or 0-5 VDC analog output
- As an add-on to a new gas monitor selected from our website

When you order this solution, we pre-wire the sensors for you, making the setup fully plug-and-play. All you need to do is:
- Plug in the Ethernet gateway
- Connect your air quality monitor
- Log in to the software using the credentials we provide

It’s a hassle-free, ready-to-use setup designed for fast and simple deployment.



Compatible Monitors:

The following gas monitors are compatible with our Remote Data Logging sensors:

Monitors with 4-20 mA Output:
OA-1, F12is, F12D, B12, B12 Wetgas, B14, A14/A11, S-900, S-930, OS-6, OS-4, Air Alert, UV-106L, UV-106M, UV-106H, 465L, 465M, 465H

Monitors with 0-5 VDC Output:
S-500, S-300, C30ZX



How to Order:

  1. Choose your sensor type

    - Select the enclosure style and number of sensors you need from the dropdown menu below.

  2. Choose your software and sensor package

    - Select either the Premiere (cloud-based) or Express (local PC) software, then choose between the 6-sensor package ($45/year) or the 12-sensor package ($70/year). The first year is included with your purchase.

Need help? Contact us and we’ll recommend the best setup for your needs.

More Information

Manufacturer Misc
Warranty 1 Year

Customer Reviews

Quality
Value
Price
Made my life and job 100x easier
Review by
This is the perfect set-up for any facility or company that has to do large scale decontamination projects. It eliminates having to run cables under doors then going back and trying to keep the VHP from leaking out. I’m really impressed because it made my life and job 100x easier. Now I don’t have to sit in the hallway for hours, I can just set the monitor outside and have it send me a notification if it senses anything above 1 PPM!
