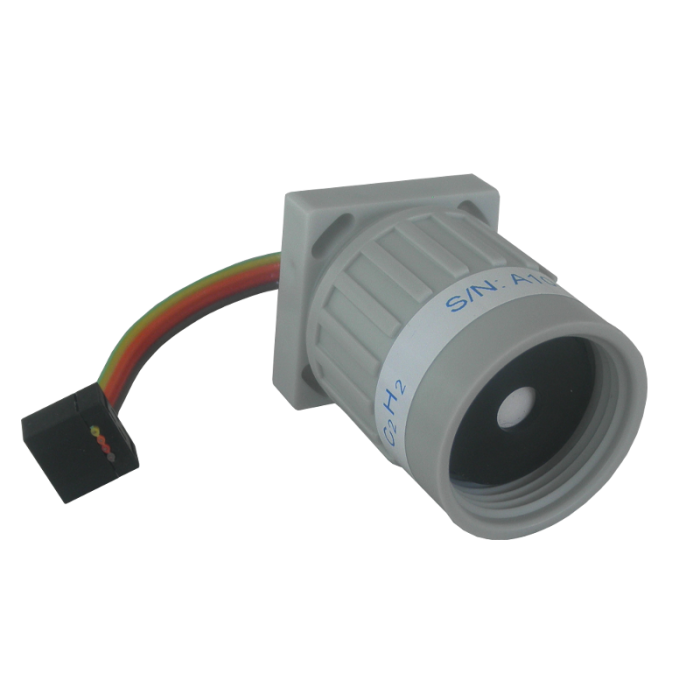

ATI Alcohol Sensor 00-0727

PN - 00-0727, A10-39 Alcohol sensor.  Replacement sensor for ATI A14/A11 or B12 Gas Detector.

Replaces Alcohol sensor, standard calibration range is 0-20 ppm Alcohol detection.

Alcohol Information

SKU
ATI 00-0727
  $315.00

Description / ATI Alcohol Sensor 00-0727

Replacement sensor for ATI A14/A11 or B12 Gas Detectors.

Replaces Alcohol sensor, 0- 500 ppm range

Sensor can be installed in existing transmitter and is a simply plug in connection.  Sensor must be calibrated on transmitter for proper operation.  For information on calibration follow this link, or contact our office.

Alcohol Information





All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

**Calibration Service Request Form **

Calibration Costs:

Calibration costs do vary, see below to get an estimate:

Calibration Fee: $150

Analyzer Calibration Fee: $300

PM Calibration Sensor Fee: $330

Genie Calibration Fee: $265

ATI Calibration Fee: $205

** note that prices are subject to change per labor and parts required.

More Information

Manufacturer ATI
Gas Alcohol
Sensor Type Electrochemical Cell
Range 0- 500 ppm
Accuracy Generally ±5% of value, but limited by available calibration gas accuracy.
Standard Range 0-500 ppm
Minimum Range 0-100 ppm
Maximum Range 0-100 ppm
Monitor sensor fits A14/A11, B12
Sensitivity 1.0 ppm
Operational Temperature Range -25° to +55°C
Operational RH Range 0-95% non-condensing
Warranty 1 Year
