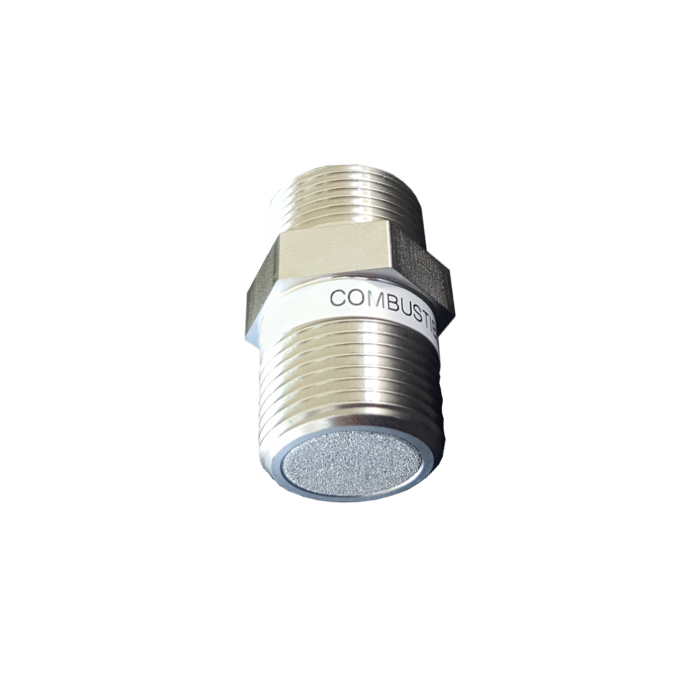

ATI Alcohol Explosion Proof Sensor 00-0730
PN - 00-0730, C10-39 Alcohol sensor. Replacement explosion-proof sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Alcohol sensor, standard calibration range is 0-20 ppm Alcohol detection.
- SKU
- ATI 00-0730
Description / ATI Alcohol Explosion Proof Sensor 00-0730
Replacement explosion-proof sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Alcohol sensor, 0- 500 ppm range
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
Manufacturer | ATI |
---|---|
Gas | Alcohol |
Sensor Type | Electrochemical Cell |
Range | 0- 500 ppm |
Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
Standard Range | 0-500 ppm |
Minimum Range | 0-100 ppm |
Maximum Range | 0-100 ppm |
Monitor sensor fits | A14/A11, B12 |
Sensitivity | 1.0 ppm |
Operational Temperature Range | -25° to +55°C |
Operational RH Range | 0-95% non-condensing |
Warranty | 1 Year |
