ATI Hydrogen Sensor 00-0134

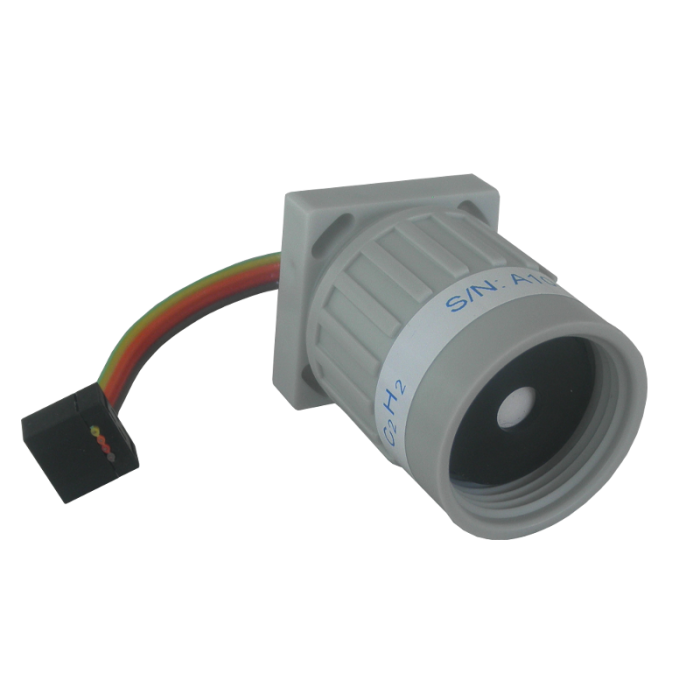

PN - 00-0134, A10-18 Hydrogen.  Replacement sensor for ATI A14/A11 and B12 Gas Detectors.

Replaces Hydrogen sensor, standard calibration range is 0-4% Hydrogen detection.

Hydrogen Information

SKU
ATI 00-0134

Customizable Options:

  $245.00

Description / ATI Hydrogen Sensor 00-0134

Replacement sensor for ATI A14/A11 and B12 Gas Detectors.

Replaces Hydrogen sensor, 0-4 % range

Sensor can be installed in existing transmitter and is a simply plug in connection.  Sensor must be calibrated on transmitter for proper operation.  For information on calibration follow this link, or contact our office.

Hydrogen Information



More Information

Manufacturer ATI
Gas Hydrogen (H2)
Sensor Type Electrochemical Cell
Range 0-4 %
Accuracy Generally ±5% of value, but limited by available calibration gas accuracy.
Standard Range 0-4 %
Minimum Range 0-1 %
Maximum Range 0-5 %
Monitor sensor fits A14/A11, B12
Sensitivity 0.1 %
Operational Temperature Range -25° to +55°C
Operational RH Range 0-95% non-condensing
Warranty 1 Year
