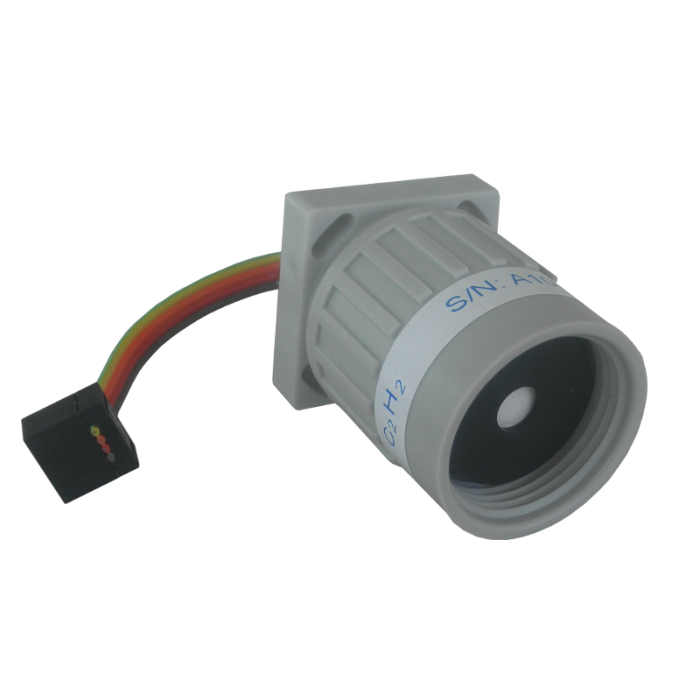

ATI Hydrogen Cyanide Replacement Sensor 00-0088
ATI Hydrogen Cyanide Replacement Sensor 00-0088
PN - 00-0088, A10-22 Hydrogen Cyanide. Replacement sensor for ATI A14/A11 & B12 Gas Detectors.
Replaces Hydrogen Cyanide sensor, standard calibration range is 0-20 ppm Hydrogen Cyanide detection.
- SKU
- ATI 00-0088
$296.00
Related Products
Description / ATI Hydrogen Cyanide Replacement Sensor 00-0088
Replacement sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Hydrogen Cyanide sensor, 0-20 ppm range
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Hydrogen Cyanide (HCN) |
| Sensor Type | Electrochemical Cell |
| Range | 0-20 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-20 ppm |
| Minimum Range | 0-100 ppm |
| Maximum Range | 0-5 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 0.1 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
