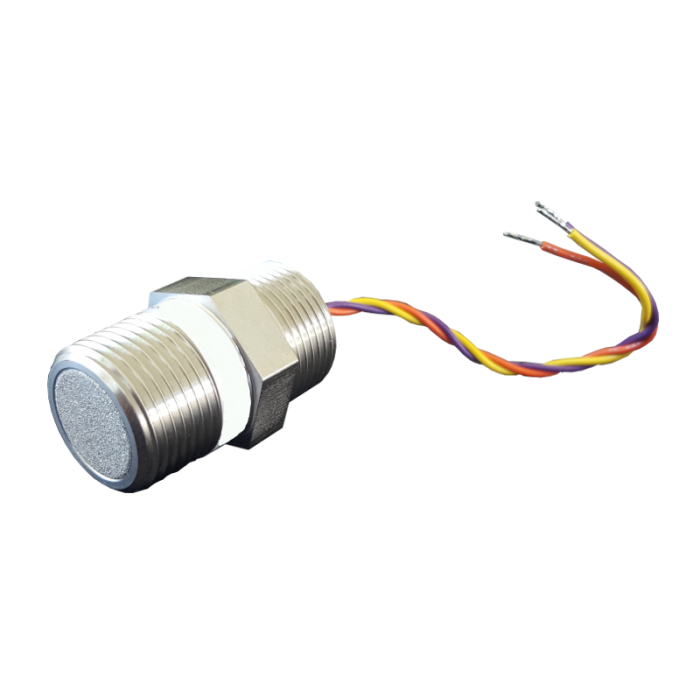

ATI Hydrogen Sulfide Explosion Proof Replacement Sensor 00-0109

PN - 00-0109, C10-24 hydrogen sulfide explosion-proof sensor.  Replacement sensor for ATI A14/A11 or B12 Gas Detectors.

Replaces Hydrogen Sulfide sensor, standard calibration range is 0-50 ppm Hydrogen Sulfide detection.

Hydrogen Sulfide Information


Replacement explosion-proof sensor for ATI A14/A11 and B12 Gas Detectors.

Replaces Hydrogen Sulfide sensor, 0-50 ppm range

Sensor can be installed in existing transmitter and is a simply plug in connection.  Sensor must be calibrated on transmitter for proper operation.  For information on calibration follow this link, or contact our office.

Hydrogen Sulfide Information

More Information
Manufacturer ATI
Call For Price No
Gas Hydrogen Sulfide (H2S)
Sensor Type Electrochemical Cell
Range 0-50 ppm
Accuracy Generally ±5% of value, but limited by available calibration gas accuracy.
Standard Range 0-50 ppm
Minimum Range 0-10 ppm
Maximum Range 0-100 ppm
Monitor sensor fits A14/A11, B12
Sensitivity 0.1 ppm
Operational Temperature Range -25° to +55°C
Operational RH Range 0-95% non-condensing
Warranty 1 Year
