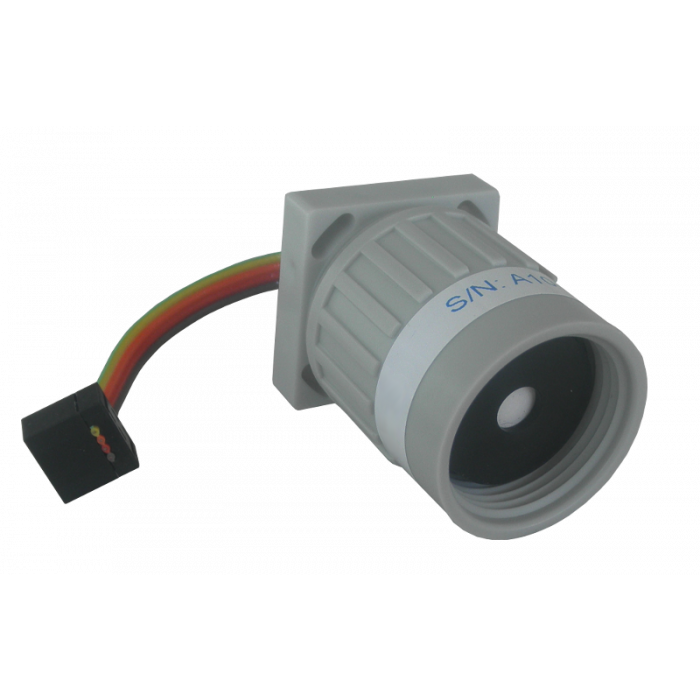

ATI Sensor Low range Ozone/l2 Sensor 00-1097
PN - 00-1097, A10-14/35 Low Range Ozone/I2 Sensor. Replacement sensor for ATI A14/A11 and B12 Gas Detectors.
Replaces low range ozone, and low range iodine.
12 In Stock
- SKU
- ATI 00-1097
$246.00
Description / ATI Sensor Low range Ozone/l2 Sensor 00-1097
Replacement sensor for ATI A14/A11 and B12 Gas Detectors.
Replaces low range ozone, 0-2 ppm, and low range iodine, 0-2 ppm
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Quickbooks Stock Level | 12.000000 |
| Gas | Iodine (I2), Ozone (O3) |
| Sensor Type | Electrochemical Cell |
| Range | 0-2 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-2 ppm |
| Minimum Range | 0-1 ppm |
| Maximum Range | 0-10 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 0.01 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
