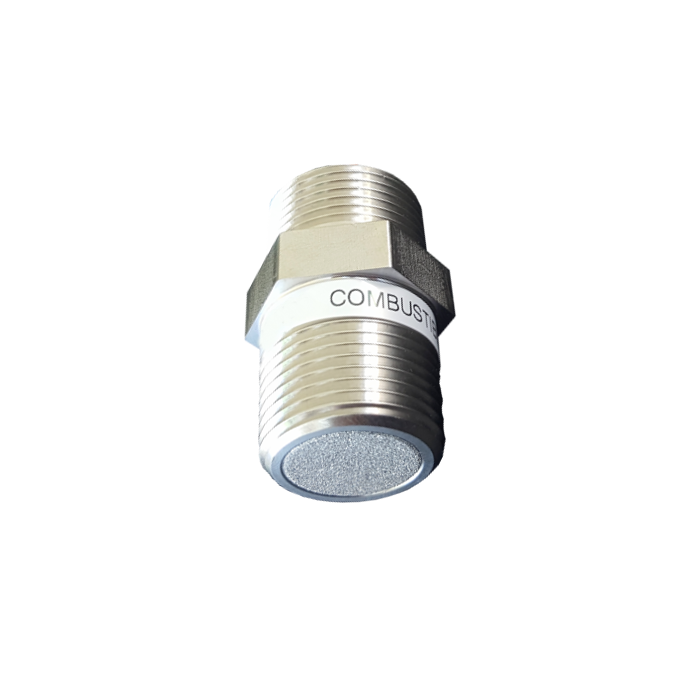

ATI Explosion Proof Sensor Ammonia 50-500 ppm 00-0103
PN - 00-0103, C10-15 Low Range Ammonia explosion-proof Sensor. Replacement sensor for ATI A14/A11 and B12 Gas Detectors.
Replaces low range ammonia, can be calibrated for 50 - 500 ppm ammonia detection.
- SKU
- ATI 00-0103
Related Products
Description / ATI Explosion Proof Sensor Ammonia 50-500 ppm 00-0103
Replacement explosion-proof sensor for ATI A14/A11 and B12 Gas Detectors.
Replaces low range ammonia sensor, 50-500 ppm range
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Ammonia (NH3) |
| Sensor Type | Electrochemical Cell |
| Range | 50-500 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-1000 ppn |
| Minimum Range | 0-500 ppm |
| Maximum Range | 0-2000 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 1.0 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
