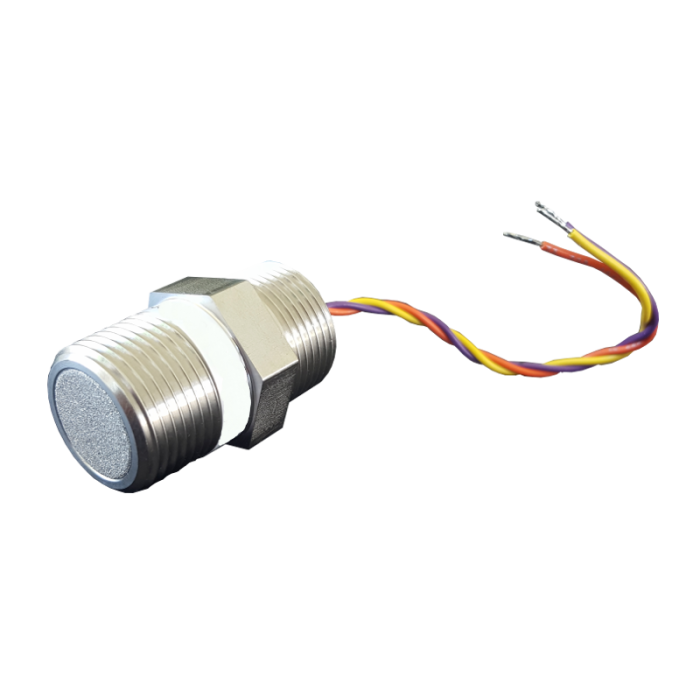

ATI- high range Oxidant explosion proof Sensor 00-0100
PN - 00-0100, C10-xx high range oxidant explosion-proof sensor. Replacement sensor for ATI A14/A11 and B12 Gas Detectors.
Replaces Bromine, Chlorine, Chlorine Dioxide, and Fluorine sensors, standard calibration range is 0-20 ppm for each sensor.
- SKU
- ATI 00-0100
$245.00
Related Products
Description / ATI- high range Oxidant explosion proof Sensor 00-0100
Replacement explosion-proofsensor for ATI A14/A11 and B12 Gas Detectors.
Replaces Bromine, Chlorine, Chlorine Dioxide, and Fluorine sensors, 0-20 ppm range. Each gas uses the same sensor, calibrate for specific gas and range.
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Bromine (Br2), Chlorine (Cl2), Chlorine Dioxide (ClO2), Fluorine (F2) |
| Sensor Type | Electrochemical Cell |
| Range | 0-20 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-20 ppm |
| Minimum Range | 0-5 ppm |
| Maximum Range | 0-20 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 0.1 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
