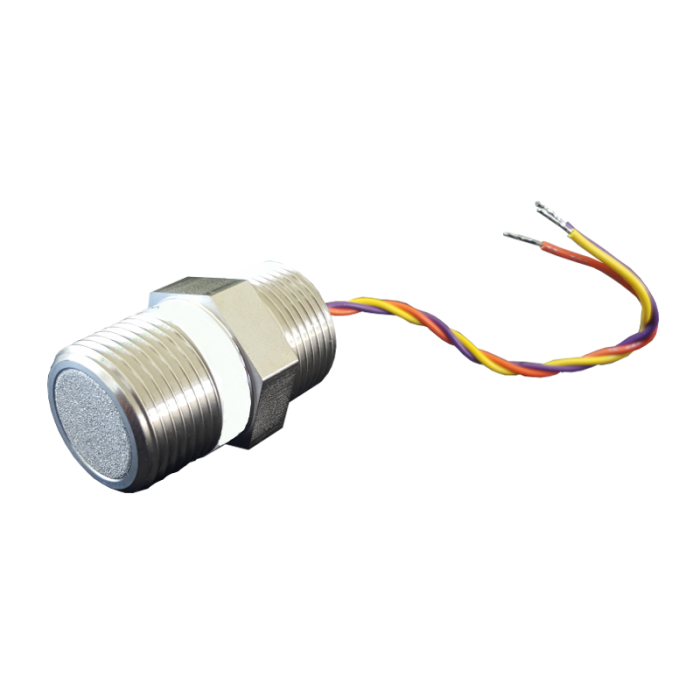

ATI Phosgene Explosion Proof Sensor 00-0137
PN - 00-0137, C10-20 Phosgene. Replacement explosion-proof sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Phosgene sensor, standard calibration range is 0-2 ppm Phosgene detection.
- SKU
- ATI 00-0137
$285.00
Related Products
Description / ATI Phosgene Explosion Proof Sensor 00-0137
Replacement explosion-proof sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Phosgene sensor, 0-2 ppm range.
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Phosgene (COCl2) |
| Sensor Type | Electrochemical Cell |
| Range | 0-2 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-2 ppm |
| Minimum Range | 0-1 ppm |
| Maximum Range | 0-5 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 0.01 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
