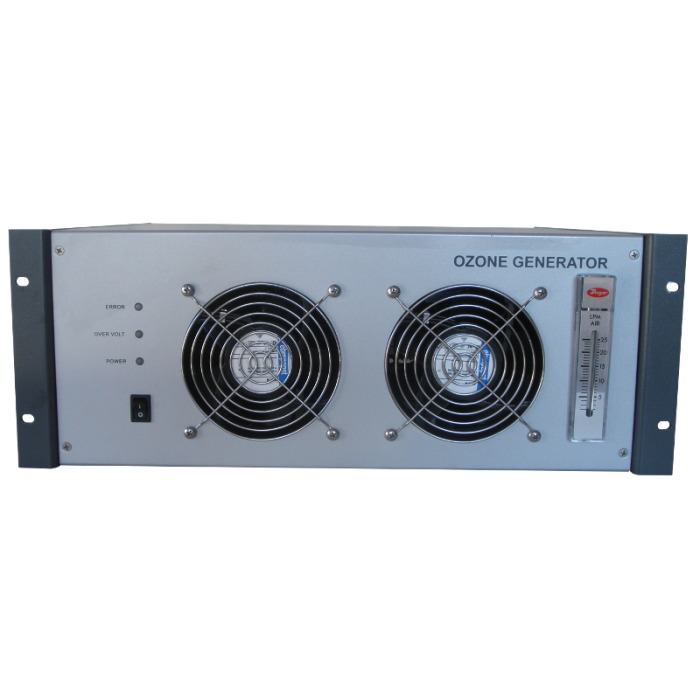

RMU-DG4 Rental
40 g/hr ozone generator available for rent.
Rental Terms:
-Pre-payment required for all rentals - payment can be made via credit card online
-Rental period is for term paid for, shipping time to and from customers location is not included in rental term and is not billed
-Shipping both to and from the customer is paid by the customer - Ground shipping is okay
-Equipment gauranteed to arrive in working order, any damge to equipment will be billed to customer
-Rental term can be extended at any time during the rental
-Discounts for longer term rentals apply, arrangements must be made up front
Key Features:
-Produces Up to 40 g/hr ozone from oxygen efficiently
-Double Quartz Technology produces pure ozone
-Rack mount or benchtop mount
-Flow meter is standard - with valve
-Adjustable output Standard
-Pressure Switch Standard
-Detachable power cord
-Easy to install and operate
-Powder coated Al. cabinet
Ozone Generator performance on both dry air and oxygen feed gas shown below.
Ozone Production from Oxygen:
O3 Output |
O2 Flow | O3 Concentration |
20 g/hr | 2.3 LPM | 150 g/m3 - 10% |
30 g/hr | 4 LPM | 120 g/m3 - 8.5% |
40 g/hr | 8 LPM | 82 g/m3 - 5.7% |
50 g/hr | 15 LPM | 55 g/m3 - 3.9% |
Using the RMU-DG4 with Oxygen:
We provide a variety of oxygen concentrators that could be used with the RMU-DG4. Our recommendation would be the OG-20 Oxygen Concentrator. The OG-20 will produce 10 LPM of oxygen, this is more than sufficient for a full 40 g/hr of ozone production from the RMU-DG4. The oxygen pressures, flows and general operation of the OG-20 will be a great fit with the RMU16-DG4. However, if you choose to use your own oxygen concentrator, simply contact our office and let us ensure it is the right fit for your application.
Double Quartz Corona Cell
The RMU-DG uses double quartz corona cell technology. The corona cell used in the RMU-DG is made of true quartz. See image below for example. The oxygen gas is plumbed inside the ozone generator via Teflon tubing. This oxygen will pass into the quartz corona cell and touch only quartz materials. The stainless steel electrode and cathode are placed on the outside and inside the quartz tube. The oxygen/ozone gas never touch any metal materials.
This double quartz design will completely eliminate leaks in the corona cell. This also dramatically increase the reliability of the corona cell. As the corona cell dielectric and construction are true quartz, not glass, they are rigid and strong, yet also completely impervious to ozone.
The Quartz dielectric uses aluminum cooling fins enclosing (and protecting) the quartz dielectric. This corona cell is air cooled via fans from the outside of the cell but is also cooled through the hollow tube inside the quartz dielectric. This allows the corona cell to be cooled both internally and externally. Better cooling reduces heat and allows ozone to be produced more efficiently.
The DG series of ozone generators will produce the purest possible ozone, yet offer the best reliability in any corona cell design.
Downloads:
Manufacturer | Oxidation Technologies |
---|---|
Call For Price | Yes |
