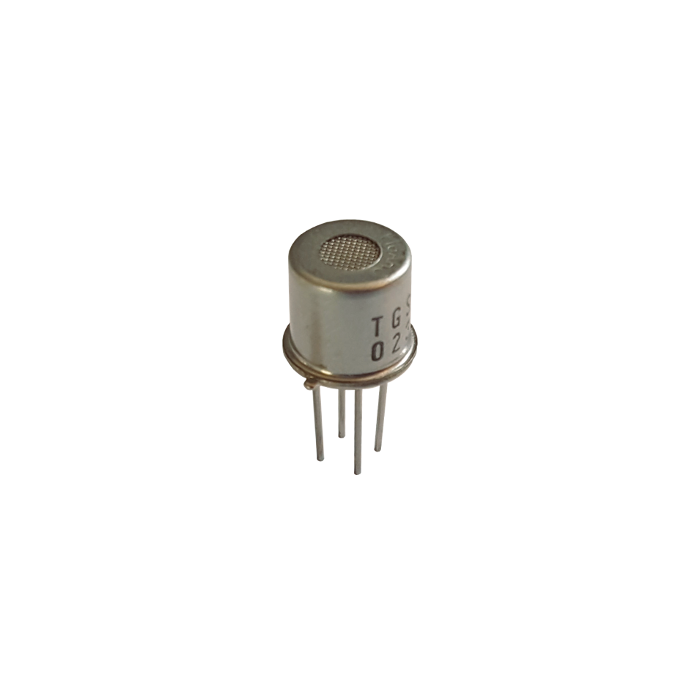

SE-4 VOC Sensor

SE-4 replacement VOC sensor module for the C-21 VOC Monitor.  Pre-calibrated and ready for use upon delivery.  Just plug into your sensor and dispose of the old sensor.

VOC Information

SKU
ES SE-4
Size
3.25 x 1.375 x 2.375 inch
  $50.00

Description / SE-4 VOC Sensor

The SE-4 module is the pre-calibrated replacement sensor used for the C-21 VOC Monitor.

The sensor (SE-4) is a serviceable part on the C-21 and it's a good practice to replace it annually.  When the C-21 is no longer responding to gases and vapors, it's likely due to sensor failure and must be replaced.

The C-21 is broadly sensitive to most VOCs, but its response is different for each one.  To calibrate for a specific gas, a chemical laboratory is required.  To view this procedure see Tech Note C-100.

 SE-4 VOC Sensor Replacement:

Sensor replacement on C-21 is simply plug-n-play.  Remove the old SE-4 sensor and replace with the new one.

 Replacing the SE-4 sensor on the C-21 VOC Monitor is simple



Links:

EcoSensors Calibration information

General Calibration Information

VOC Information

More Information

Manufacturer Eco Sensors
Gas VOC
Resolution Green = normal. Yellow = cauton. Red = danger.
Response Time Within a few seconds of the VOC gas reaching the sensor
Sensor type HMOS (Heated Metal Oxide Semiconductor) sensor
Sampling Method Diffusion
Alarms No
Dosimetry No
Operational Temperature Range 32 - 105 deg F
Operational RH Range 15 - 85% RH, non-condensing
Power Requirements Self-contained NiCad or NiMH. Approximately 2 hour capacity. Recharged by AC adapter overnight.
Tests No
Size 3.25 x 1.375 x 2.375 inch
Field Replaceable Battery No
Warranty 1 Year
Listing Description

SE-4 replacement VOC sensor module for the C-21 VOC Monitor.

Range Full scale = 50-100 ppm for most solvent based VOCs
Unit Features

SE-4 replacement VOC sensor module for the C-21 VOC Monitor.
