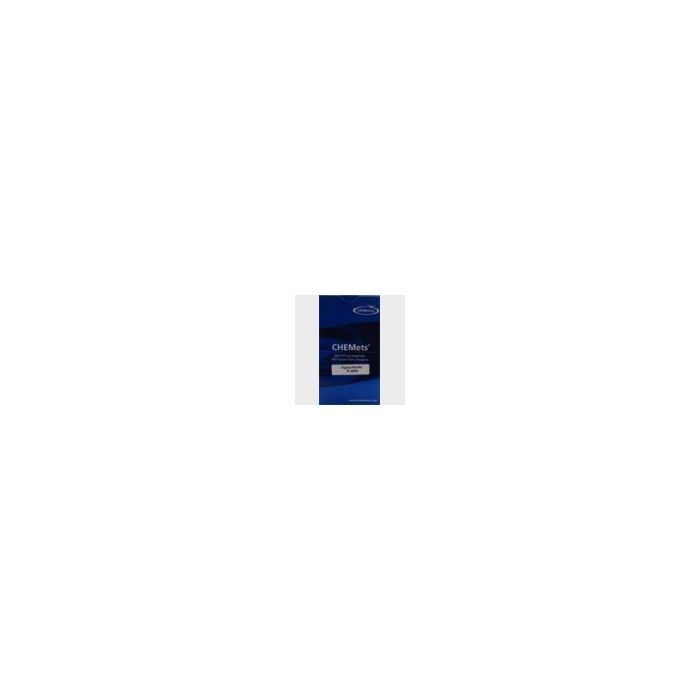

R-5808 Hypochlorite

Dissolved Hypochlorite Testing Visual Kits are designed to measure hypochlorite levels in the range 0-1.55% or 0-12.5% as NaOCl

Hypochlorite Information

$40.00

The K-5808 CHEMets Visual Kit is visual indicator kit for measuring hypochlorite in water levels from 0-1.55% as NaOCl.  K-5816 measures hypochlorite levels from 0-12.5%. This device uses the DPD Method for testing. The DPD method is also applicable to the direct determination of hypochlorite concentrations in various cleaning preparations and disinfectants prior to their dilution. DPD reacts with hypochlorite ions to form a pink color. Results are expressed as percent (%) NaOCl.

The refill kit R-5808 can be purchased for more tests.

What's included:

  • Comparator
  • Visual Ampoules (30 test)
  • Sample Prep Cup
  • 3 mL Syringe
  • 200 uL MiniPet
  • 25 mL sample cup
  • Instruction manual



How to use the K-5808/K-5816:

Instructions for Ozone water testing using the K-7404





  1. Using the syringe, add 1 mL of sample water to Sample Prep Cup.
  2. Dilute to 25 mL mark
  3. Place yellow pipette tip onto end of MiniPet
  4. Depress plunger on minipet. Immerse tip in sample and release plunger, drawing in sample to the tip.
  5. Depress plunger, emptying sample into empty sample cup.
  6. Fill the 25 mL sample cup with Distilled water.Fill the sample cup to 25ml
  7. Snap the end/tip of the ampoule in the water on the bottom/side of the 25 mL sample cup.Snap the tip of the ampoule on the bottom and side of the sample cup
  8. Mix the contents of the ampule by tipping back and forth a few times.Tip the vacu-vial back and forth to mix
  9. Dry the ampoule and wait 1 minute for color development.Dry vacu-vial and then insert into the I-2019
  10. Obtain the test result by matching to the corresponding color comparator.



Downloads:

K-5808/K/5816 Instructions

DPD Tech Sheet

Hypochlorite Information

More Information
Manufacturer CHEMetrics
Call For Price No
Gas Hypochlorite
4-20 mA Output No
Voltage Output None
Power Requirements None
Datalogging No
Warranty 1 Year
