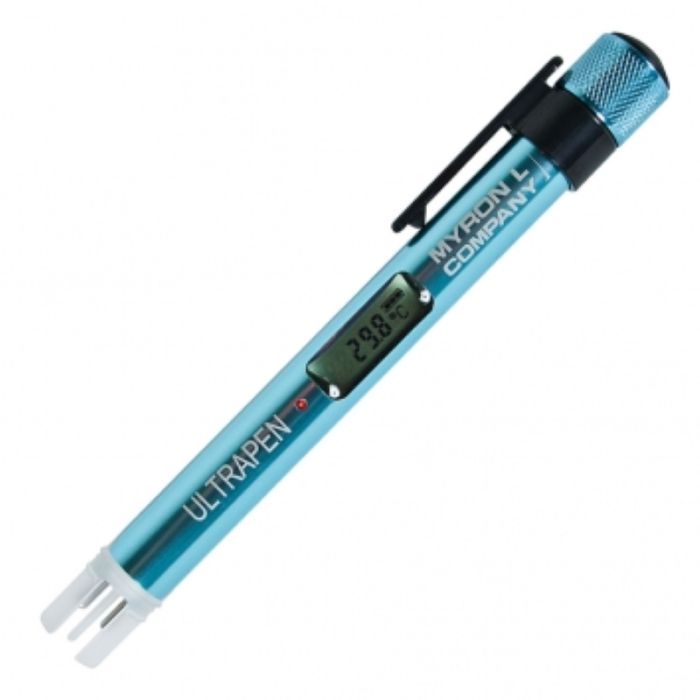

Ultrapen (EC)/TDS/Salinity Pen
The Ultrapen PT1 (EC)/TDS/Salinity Pen is designed to be extremely accurate, fast and simple to use in diverse water quality applications. Advanced features include the ability to select from 3 different solution types that model the characteristics of the most commonly encountered types of water; proprietary temperature compensation and TDS conversion algorithms; highly stable microprocessor-based circuitry; user-intuitive design; and waterproof housing. A true, one-handed instrument, the PT1 is easy to calibrate and easy to use. To take a measurement, you simply press a button then dip the pen in solution. Results display in seconds.
- SKU
- Ultrapen (EC)/TDS/Salinity Pen
Description / Ultrapen (EC)/TDS/Salinity Pen
Features:
- Accuracy of ±1% of READING ±.2% at calibration point
- Reliable Repeatable Results
- Automatic temperature compensation
- Autoranging
- Accuracy of benchtop lab equipment in an affordable, portable, compact pen
- Rugged, reliable, shock-resistant fully encapsulated electronics, body constructed of aircraft aluminum
- Simple one button function
- Specially designed with measurement ranges and solution modes to meet the water quality testing needs of many applications
- High capacity N-type battery included
- Waterproof
Applications:
- Agriculture
- Hydroponics
- Desalination
- Aquaculture
- Pharmaceutical
-Boilers and Cooling Towers
- Fountain Solutions for Printing
- Horticulture
- Wastewater
- Pool and Spa
- Food and Beverage
- Irrigation
- Reverse Osmosis
| Measurement Range: | 1 - 9999 μS or ppm (0.0010 - 9.999 ppt salinity) |
| Accuracy: | ± 1% of reading |
| Repeatability: | < 1000 μS or ppm ± 1 Count ≥ 1000 μS or ppm ± 0.3% of reading |
| Resolution: | Electrical Conductivity (EC) and TDS: 0.1 for 1.0 - 99.9 μS or ppm 1 for 100 - 9999 μS or ppm Salinity: 0.0001 for 0.0010 - 0.0999 ppt 0.001 for 0.100 - 9.999 ppt Temperature: 0.1 ºC or ºF |
| Time to Reading Stabilization: | 10 - 20 seconds |
| Active Mode Power Consumption: | 30 - 100 mA |
| Sleep Mode Power Consumption: | 2 μA |
| Temperature Measurement Range: | 0 - 71 °C or 32 - 160 °F |
| Temperature Accuracy Displayed: | ± 0.1 ºC or ± 0.2 ºF |
| Temperature Compensation Method: | Automatic to 25 ºC |
| Physical Dimensions: | 17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D |
| Weight: | 55 g or 1.94 oz. |
| Case Material: | Anodized Aluminum with UV Protective Coating |
| Battery Type: | N type, Alkaline |
| Battery Voltage: | 1.5 V |
| Calibration Solution Point: | 1800 μS KCl; 3000 ppm 442™ (2027 ppm NaCl) |
| Operating/Storage Temperature: | 0 - 55 ºC or 32 - 131 ºF |
| Water Resistance: | IP67 and NEMA 6 |
| EN61236-1: 2006 - Annex A: 2008 | Electrostatic discharge to case of instrument may cause PT1 to spontaneously power on. In this case, the PT1 will power off after several seconds. |
More Information
| Manufacturer | AquaPhoenix |
|---|---|
| 4-20 mA Output | No |
| Voltage Output | None |
| Datalogging | No |
| Warranty | 1 Year |
