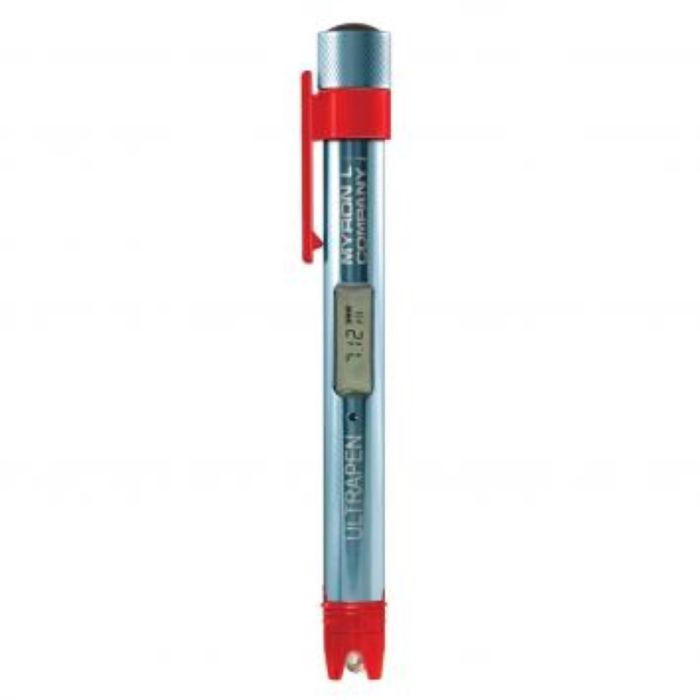

Ultrapen PT2 pH and Temp
Ultrapen PT2 pH and Temp
This instrument is designed to be extremely accurate, fast and simple to use in diverse water quality applications. Advanced features include automatic temperature compensation; highly stable microprocessor-based circuitry; user-intuitive design; and waterproof housing. A true one-handed instrument, the PT2 is easy to calibrate and easy to use. To take a measurement, you simply push a button then dip the pen in solution. Results display in seconds.
- SKU
- Ultrapen PT2
Related Products
Description / Ultrapen PT2 pH and Temp
This instrument is designed to be extremely accurate, fast and simple to use in diverse water quality applications. Advanced features include automatic temperature compensation; highly stable microprocessor-based circuitry; user-intuitive design; and waterproof housing. A true one-handed instrument, the PT2 is easy to calibrate and easy to use. To take a measurement, you simply push a button then dip the pen in solution. Results display in seconds. pH range: 0-14 pH Temperature: 32-160°F
Features:
- Accuracy of ±0.01 pH
- 1, 2 and 3 Point Calibration
- Proprietary Sensor Design
- Automatic temperature compensation
- Reliable Repeatable Results
- Rugged, reliable, shock-resistant fully encapsulated electronics
- Durable body constructed of aircraft aluminum
- Simple one button function
- High capacity N-type battery included
- Waterproof
Specifications:
| pH Range: | 0.00-14.00 pH |
| pH Accuracy: | ± 0.01 pH (After Wet Calibration)* |
| pH Repeatability: | ± 0.01 pH |
| pH Resolution: | 0.01 pH |
| Temperature Range: | 0-71°C/32-160°F |
| Temperature Accuracy: | ±0.1ºC |
| Temperature Repeatability: | ±0.1ºC/±0.1ºF |
| Temperature Resolution: | 0.1ºC/0.1ºF |
| Time to Reading Stabilization: | 10-30 seconds |
| Power Consumption: | Active Mode: 30 – 140 mA, Sleep Mode: 2 µA |
| Temperature Compensation: | Automatic to 25ºC |
| Physical Dimensions: | 17.15 cm L x 1.59 cm D or 6.75 in. L x 0.625 in. D |
| Weight: | 54 g/1.9 oz. (without soaker cap and lanyard) |
| Case Material: | Anodized Aircraft Aluminum with Protective Coating |
| Battery Type: | One N type, Alkaline, 1.5 V |
| Calibration Solutions: | pH4, pH7, pH10 |
| Operating/Storage Temperature: | 0-55ºC or 32-131ºF |
| Enclosure Ratings: | IP67 and NEMA6 |
| EN61236-1: 2006 – Annex A: 2008: | Electrostatic discharge to the PT2 may cause it to spontaneously turn on. If this occurs, the PT2 will turn off. |
Manual and Spec Sheets:
More Information
| Manufacturer | AquaPhoenix |
|---|---|
| 4-20 mA Output | No |
| Voltage Output | None |
| Datalogging | No |
| Warranty | 1 Year |
| Range | 0 to 14 pH |
