UV-106L OEM Ozone Analyzer
- SKU
- UV-106L-OEM
Description / UV-106L OEM Ozone Analyzer

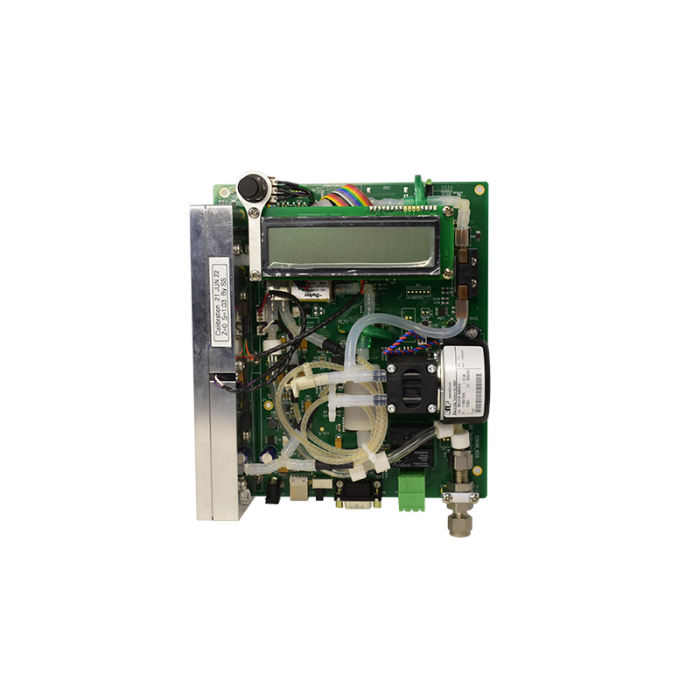

The UV-106-L Ozone Analyzer with an OEM configuration, is a low range ozone analyzer featuring less than ppb resolution. The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board. Ozone levels are measured at 0.1 ppb and can read ozone up to 100 ppm.
Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream. A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp. This method of ozone detection will offer accurate detection of ozone at low levels (down to 0.1 ppb) while eliminating most cross-sensitivity from other gasses.
If you're looking to temporarily monitor ozone, we have a UV-106-L Ozone Analyzer Rental available here.
Features:
The UV-106 comes standard in a bench mount configuration making it simple to set up for many applications.
We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.
Downloads:
UV-106-L ManualMore Information
| Manufacturer | 2B Technologies |
|---|---|
| Quickbooks Stock Level | 1.000000 |
| Quickbooks Stock Date Expected | 2024-09-26 00:00:00 |
| Call For Price | No |
| Resolution | 0.0001 ppm |
| Sampling Method | Fan |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Standard Range | 0-100 ppm |
| Range | 0-100 ppm |
| Unit Features | - OEM Configuration - Includes datalogging with software - Low power consumption; can be battery operated - Two level relay for control purposes - Long-life pump (15,000 hr) |
