480L Ozone Analyzer
The Model 480L UV Photometric Ozone Monitor is an extremely stable analyzer, ideal for critical low-level ppm safety and process applications. Its calibration is NIST traceable and the included pressure and temperature compensation ensure high accuracy under all conditions.
- SKU
- 480L
Description / 480L Ozone Analyzer

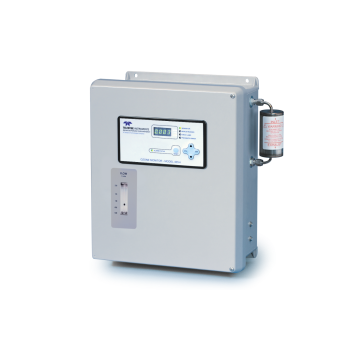

The Model 480L is housed in a splashproof NEMA 4X wall mount enclosure and can be purchased either as a single stream unit or as a multi-channel unit capable of monitoring up to six individual sample streams. The Model 480L has been designed to deliver excellent performance, high reliability and simple operation. The modular design allows for easier field serviceability. Operating parameters can be easily set up in the field using the operator-friendly menu driven software.
The mercury-free UV LED source in the detection cell makes this process ozone monitor the first of its kind.
Built-in diagnostics provide warning signals in case operating parameters are out of range. Test values can be viewed while the Model 480L is operating. These displays, warnings, and self-diagnostics, along with the modular design, allow maximum uptime. A self-adjusting pump allows for longer pump life. In addition, improved communication interfaces allow for greater productivity. Any function that can be set or monitored from the front panel can be remotely set or viewed.
Features:
- UV Absorption Method
- Intuitive graphical user interface
- Mercury-free UV LED source
- Built-in diagnostics/error logs/warning alarms
- Modular internal design
- Minimal zero drift
- 1, 3 and 6 stream versions available for safety monitoring
- Programmable concentration alarms
- Temperature and pressure compensation (standard)
- Ethernet standard, WiFi (coming soon)
Specifications:
| Measurement Principle | UV Absorption (Beer-Lambert Law) |
| Measurement Range | 0-1 ppm to 0-500 ppm |
| Units | ppmv, ppbv, pphm, ug/m3 |
| Precision / Repeatability | ± 0.5% of full scale |
| Accuracy | ± 1% of full scale |
| Lower Detectable Limit | 0.003 ppm |
| Display Resolution | 0.001 ppm |
| Response Time | < 30 seconds to 95% |
| Zero Drift | .005 ppm/month, non-cumulative (.050 ppm/month Ranges >20 ppm) |
| Temperature Range | 5 - 45°C |
| Alarm Mode | Latching/non-latching, operator selectable |
| Stream Selector Cycle Time | 1 min. to 6 min., operator selectable |
| Sample Flow Rate | 0.8 LPM |
| Power | 100-240VAC, 50/60Hz, 74W |
| Analog Output | 0-5V or 4-20mA isolated output |
| High Current Relay Outputs (single-channel only) |
SPDT Form C Dry contact, 250VAC/5A (System OK, Global HI Alarm, Global HI-HI Alarm)
|
| Multi-stream Signal Outputs (3 or 6 channel, 3 per channel) |
SPST Dry Contact, 50 VDC, 250mA per output Stream ID, HI Alarm, HI-HI Alarm |
| Status Outputs | Optically isolated Digital Outputs Sensor OK, Invalid Reading, Pneumatic Error, Check Lamp
24VDC, 30mA per output |
| Dimensions (H x W x D) | NEMA 4X - 16.17” x 15.96” x 6.80“ (410.6 mm x 405.4 mm x 172.7 mm) |
| Weight | NEMA 4X - 17.6 lbs (8 kg) |
| Stream ID Outputs | Channel 1 through 6 |
| Communication Interface | RS-232, RS-485 Ethernet WiFi (coming soon) |
| Approvals | CE |
| Warranty | 1 year |
