465H Ozone Analyzer
High range ozone analyzer measures ozone up to 25% by weight, or 400 g/m3. Great for measuring output of an ozone generator, or real time process measurement of ozone from the ozone generator. This unit comes in the NEMA configuration only.
- SKU
- 465h
Related Products
Description / 465H Ozone Analyzer

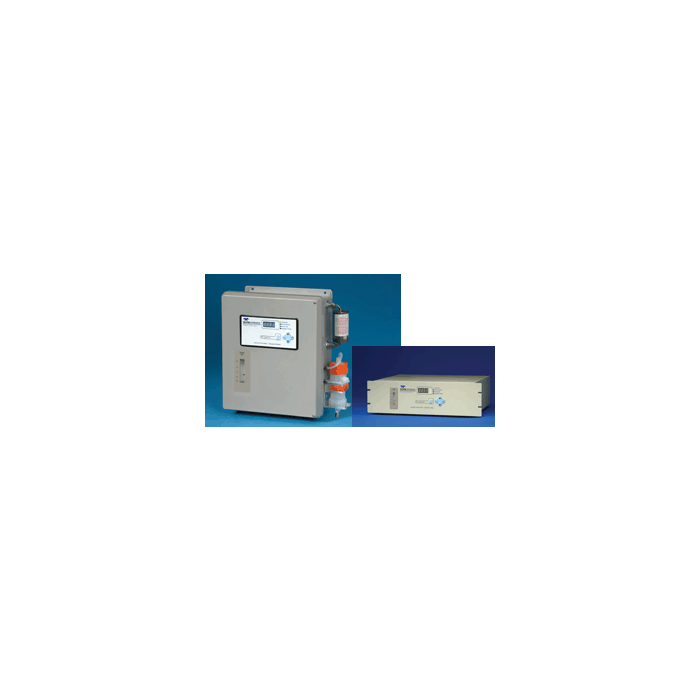

The Model 465H is a microprocessor based high concentration ozone monitor for measuring ozone in process gas streams in water treatment, food processing, and research applications. The 465H has been designed to give accurate and stable readings over long time periods with little or no maintenance or calibration. The Model 465H is available in a 19” rack mount or NEMA 4X wall mount enclosure.
The sensor module contained in the Model 465H uses detectors which have a very narrow band of spectral sensitivity, eliminating the need for UV band pass filters which are subject to deterioration by UV or humidity. Two detectors are used: one for the ozone measurement, and the other to compensate for changes in UV lamp intensity. This unique design provides a sensor which will operate for extended periods without calibration or maintenance.
Built-in diagnostics provide warning signals in case operating parameters are out of range. Test values can be viewed while the Model 465H is operating. These displays, warnings, and self-diagnostics, along with the modular design, allow maximum uptime. In addition, any function that can be set or monitored from the front panel can be remotely set or viewed through the bidirectional RS-232 port.
Features:
- Standard one year warranty
- UV Absorption Method
- Microprocessor controlled
- Menu driven software
- Ranges 0-5 to 0-25% w/w
- Built-in diagnostics
- Self-check warning alarms
- Fast response times
- Minimal zero drift
- Programmable auto-zero function included
- Programmable concentration alarms
- Temperature and pressure compensation (standard)
- Optional Ethernet
| Specifications: | |
| Measuring principle: | UV Absorption (Beer Lambert Law) |
| Ranges: | 0-5% w/w to 0-25% w/w 0-100g/Nm3 to 0-400g/Nm3 |
| Units: | % w/w, g/Nm3 |
| Precision / Repeatability: | ± 0.5% of full scale |
| Display resolution: | 0.01 % w/w, 0.1 g/Nm3 |
| Response time: | < 5 seconds to 95% |
| Temperature compensation: | Standard |
| Pressure compensation: | Standard |
| Gas flow rate: | 0.2 – 2.0 LPM |
| Operating Temperature Range: | 5 - 45° C |
| Dimensions (HxWxD): | Rack Mount – 5.22" (133 mm) x 19" (483 mm) x 15.3" (388 mm) NEMA 4X – 16.01" (407 mm) x 15.77" (401 mm) x 8.02" (204 mm) |
| Weight: | Rack Mount – 13.6 lbs (6.17 kg) NEMA 4X – 15.35 lbs (6.9 kg) |
| Power: | 100 - 240VAC, 50/60 Hz, 1.1A |
| Analog output (Bi-polar): | 5V or 4-20mA or isolated output |
| Status outputs: | System OK, Invalid Reading, UV Lamp Fault |
| RS-232: | 57.6 Kbaud, DB-9 connector |
| Approvals: | CE |
Downloads:
| M465H Replacement Parts | |
| Part Description | Part Number |
| Ultra Violet Lamp | 030700000 |
| UV Detector Assembly | 025710100 |
| Spring | HW0000020 |
| Sapphire Window | OP0000019 |
| Pressure Sensor | SW0000029 |
| Power Supply 60W | PS0000042 |
| Ozone Scrubber Assembly | 048990200 |
| O-Ring 2-022 | OR0000076 |
| O-Ring 2-018 | OR0000075 |
| O-Ring 2-014 | OR0000074 |
| Maintenance Kit | 028510000 |
| High Concentration Scrubber | 048990300 |
| Front Panel Board Single Channel | 053130400 |
| Critical Flow Orifice | 000940800 |
| Auto Zero Valve | 052740000 |
More Information
| Manufacturer | Teledyne API |
|---|---|
| 4-20 mA Output | Yes |
| Relays | 2 Relays |
| Maximum Range | 0-500 ppm |
| Minimum Range | 0-1 ppm |
| Accuracy | ± 0.5% of full scale |
| Min, Max, Avg | No |
| Voltage Output | 0-5 V |
| Power Requirements | 100 - 240VAC, 50/60 Hz |
| Datalogging | No |
| Rechargeable | Yes |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Calibration | Annually |
| Range | 0-5% w/w to 0-25% w/w 0-100g/Nm3 to 0-400g/Nm3 |
| Unit Features | -Self Check Warning Alarms -Quick Response Times -UV Absorption Methods -Minimal Zero Drift
|
| Sensor Range | 0-25% w/w or 0-400 g/Nm3 |
| Resolution | 0.01 % |
| Sensor Range | 0-25% w/w 0-400 g/m3 |
