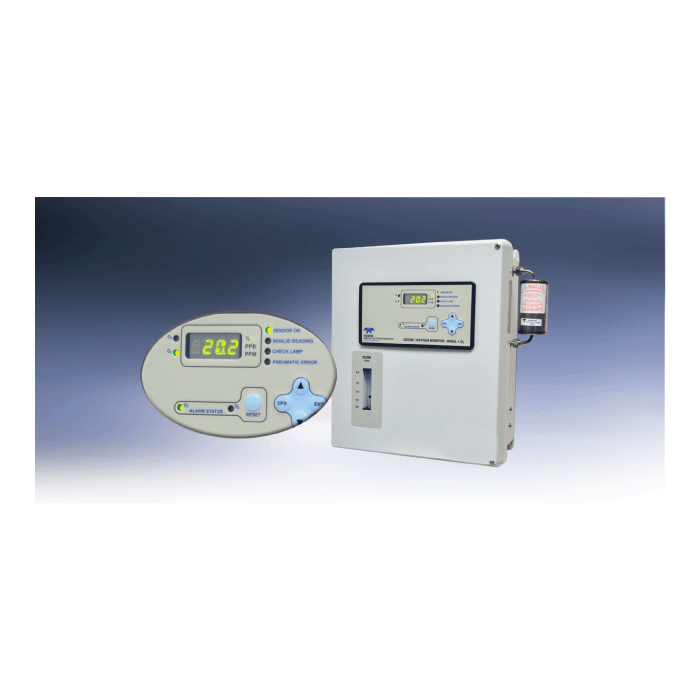

The Model 465L UV Photometric Ozone Monitor is an extremely stable analyzer, ideal for critical low-level ppm safety and process applications.  Its calibration is NIST traceable and the included pressure and temperature compensation ensure high accuracy under all conditions.  An integral micro fuel cell sensor provides accurate, continuous monitoring of O₂ and allows measuring of both gases in a single instrument.

The Model 465L + O₂ has been designed to deliver excellent performance, high reliability and simple operation.  Operating parameters can be easily set up in the field using the operator-friendly menu driven software.

Built-in diagnostics provide warning signals in case operating parameters are out of range.  Test values can be viewed while the Model 465L + O₂ is operating.  These displays, warnings, and self-diagnostics, along with the modular design, allow maximum uptime. In addition, any function that can be set or monitored from the front panel can be remotely set or viewed through the bi-directional RS-232 port.

Features

• O3 and O2 monitoring in a single wall mounted unit
• UV absorption ozone measurement with a 3 ppb LDL
• Maintenance-free, expendable micro fuel O2 cell
• Programmable concentration alarms
• Programmable High and High-High alarm contacts
• Self-check warning alarms
• Temperature and pressure compensation (standard)
• Built-in diagnostics
• Menu driven software
• Fast response times
• Minimal zero drift
• Optional Ethernet
• One-year warranty

Filters

We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.

Picture of Filter Housing: Product: FILTERHS

Downloads:

API Model 465L+O2 Brochure

API Model 465L Manual
