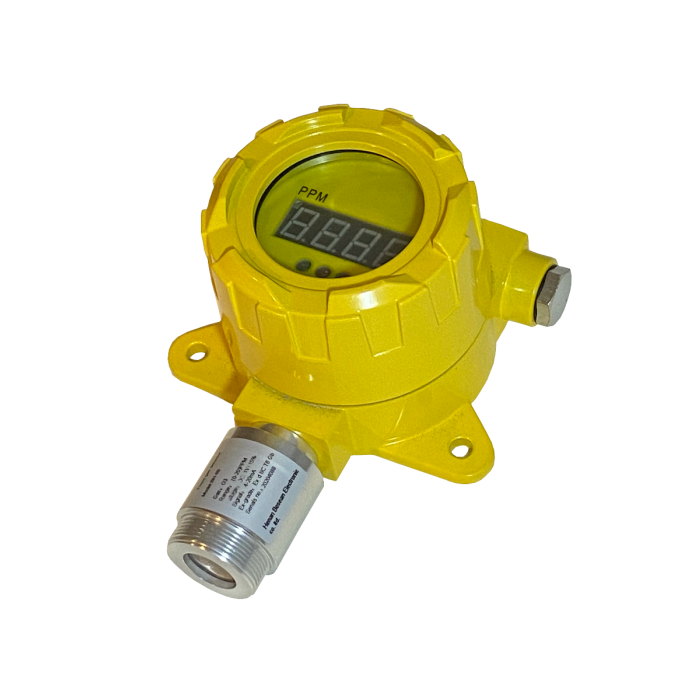

BH-60 Fixed Ozone Detector
- SKU
- BH-60
- Size
- H = 6.3”/160mm, W = 6.5”/166mm, D = 4.6”/118mm.
Description / BH-60 Fixed Ozone Detector
The BH-60 is an excellent Ozone detector, and a lot cheaper than the competitors when it comes to fixed Ozone detection. The <30 second response time promise you that this detector will work great for a number of different applications. Although not the best option for smaller-scale Ozone detection, the BH-60 is great for different industries (petroleum, chemical, municipal, etc.)! When the BH-60 detects Ozone at a concentration higher than the preset values, it will give off both an audible alarm, as well as a visual warning. This dual-deliverance system ensures that it will get your attention whenever there is a harmful level of Ozone in the air around you. With a price tag of only $360, (while competitors can cost over four-figures) the BH-60 is a great economical choice for a wide of array uses.
Calibration:
Your Bosean sensor will need to be sent back to us to be calibrated. Please click here to see more information on our calibration services, as well as our calibration pricing. Your BH-60 sensor should be replaced annually. Contact Us Today to get your sensor calibrated. *Please Note: There may be additional costs depending on replacement sensor pricing.
| Product type | BH-60 fixed gas detector/transmitter |
| Explosion proof grade | Exd ⅡC T6 Gb |
| Response time | ≦30S |
| Power supply | DC24V±10% |
| Working temperature | -20℃～50℃ |
| Output current | 4-20mA |
| Working humidity | 0-95%RH |
| Contact output | Free contact output, max power 1kW |
| Single input | 4~20mA and RS485 |
| Installation method | Wall-mounted |
| Shell material | Aluminum |
| Dimensions | 190x150x95mm（L×W×H） |
| Model | Range | L-Alarm | H-Alarm |
| O3 | 0-20ppm | 5ppm | 10ppm |
Downloadable Content:
More Information
| Manufacturer | Bosean |
|---|---|
| Quickbooks Stock Level | 1.000000 |
| Call For Price | No |
| Gas | Ozone (O3) |
| Resolution | 0.1ppm |
| Integrated Relays | Yes |
| Response Time | 30 second |
| Sampling Method | Fan |
| Alarms | Yes |
| Operational Temperature Range | -20℃～50℃ |
| Operational RH Range | 0 - 95% RH |
| Power Requirements | DC24V±10% |
| Size | H = 6.3”/160mm, W = 6.5”/166mm, D = 4.6”/118mm. |
| Field Replaceable Battery | No |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Calibration | Replace Sensor Annually |
| Sensor Life | 1 Year |
| Range | 0-20 ppm |
| Unit Features | -Explosion Proof -Can be Loop Powered |
| Sensor Range | 0-20 ppm |
| Sensor Range | 0-20 ppm (O3) |
