BW Carbon Monoxide Sensor 0-1000 ppm (PS-RM04H)

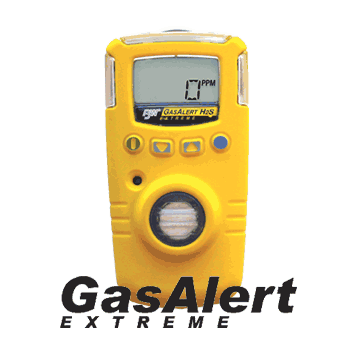

Replacement Carbon Monoxide (CO-H) sensor for the GasAlert Extreme that reads 0-1000ppm. Simply remove the old sensor and replace with this new pre-calibrated sensor.
- SKU
- PS-RM04H
Description / BW Carbon Monoxide Sensor 0-1000 ppm (PS-RM04H)
0-1000ppm Carbon Monoxide (1 ppm increments), H2 resistant
Replacement sensor for the GAXT-M2-DL
To replace a sensor complete the following.
- Deactivate the detector.
- Remove the four machine screws on the rear shell and remove the rear shell.
- Remove the tow machine screws from the PCB.
- Remove the PCB. Place the PCB on a clean, non-conductive surface.
- Replace the sensor.
- Allow the new sensor 5 minutes to stabilize before use. For a new ETO or NO sensor, allow the new sensor 2 hours to stabilize before use.
- Re-assemble the detector. When assembling the detector, perform the following:
- Clean the seal on the front and rear shells with a soft damp clean cloth. Do no use solvents, soaps or polishes.
- Ensure the front and rear shells are properly aligned to ensure a proper environmental seal.
- Torque the screws to 3-4 in-lbs in a crisscross pattern to ensure a proper environmental seal. Do not over tighten.
More Information
Manufacturer | Honeywell / BWT |
---|---|
Gas | Carbon Monoxide (CO) |
Standard Range | 0-1000 ppm |
Field Replaceable Sensor | Yes |
Field Replaceable Battery | Yes |
Monitor sensor fits | GAXT |
Sensor Type | Electrochemical Cell |
Accuracy | ± 5% of value |
Alarms | Visual, Vibrating, Audible (95 dB) for Low, High, STEL, TWA |
Operational Temperature Range | -40 to +122 F / -40 to +50 C |
Operational RH Range | 15-90% Non-condensing |
Warranty | 2 Year |
