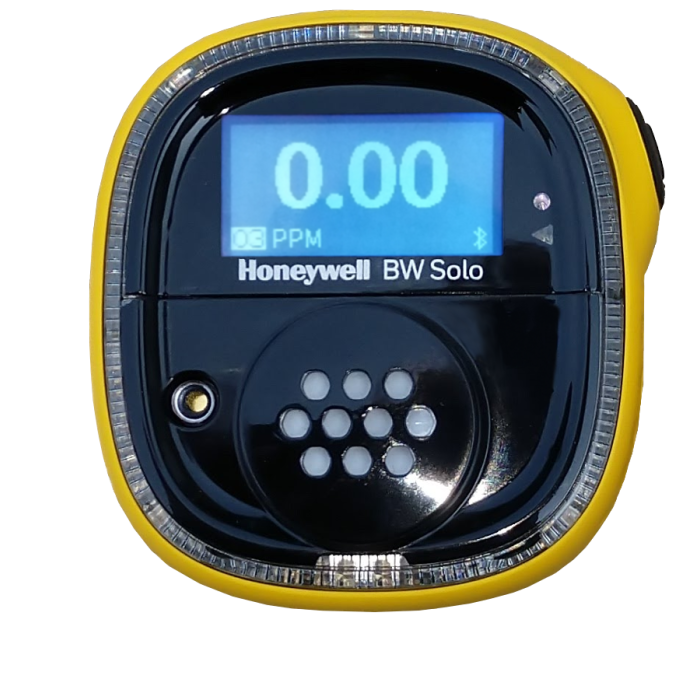

BW Solo

The H2 Honeywell BW™ Solo is a portable detector with a wide measuring range  that fits in the palm of your hand. This new, smaller design allows gas to diffuse into it more quickly, giving it a faster response time than previous models. The design also features easy access to internal components through a removable front panel making maintenance and sensor replacement quick and hassle-free. The sensor has a 2-year life expectancy and comes with a one-year warranty. The BW Solo's rugged, durable exterior that can withstand extreme temperatures and other environmental conditions making ideal for long term use in harsh environments.

How to use the BW Solo Video HERE

As low as $468.00
8 week lead time

BW Solo Specifications

Gas Type Product Name Measuring Range Resolution
Low Setpoint
Highset point
Ammonia (NH3) BW Solo NH3 0-100ppm 1 ppm 25 ppm 50 ppm
Ammonia (NH3) extended range BW Solo NH3 extended 0-400 ppm 1 ppm 25 ppm 50 ppm
Carbon monoxide BW Solo CO 0-2000ppm 1 ppm 35 ppm 200 ppm
Carbon monoxide (CO) H2 resistant BW Solo CO H2 resistant 0-2000ppm 1 ppm 35 ppm 200 ppm
Chlorine (Cl2) BW Solo Cl2 0-50 ppm 0.1 ppm 0.5 ppm 1.0 ppm
Chlorine dioxide (ClO2) BW Solo ClO2 0-1ppm 0.01 ppm 0.1 ppm 0.3 ppm
Ethylene Oxide (ETO)(C2H4) BW Solo C2H4 0-100 ppm 0.1 ppm 1 ppm 5 ppm
Hydrogen H2 BW Solo H2 0-1000 ppm 2 ppm 100 ppm 500 ppm
Hydrogen cyanide (HCN) BW Solo HCN 0-100 ppm 0.1 ppm 4.7 ppm 10 ppm
Hydrogen sulfide (H2S) BW Solo H2S 0-200 ppm 0.1 ppm 10 ppm 15 ppm
Hydrogen sulfide (H2S) extended range BW Solo H2S extended 0-500 ppm 0.1 ppm 10 ppm 15 ppm
Nitric oxide (NO) BW Solo NO 0-250 ppm 0.2 ppm 25 ppm 25 ppm
Nitric dioxide (NO2) BW Solo NO2 0-100 ppm 0.1 ppm 2 ppm 5 ppm
Oxygen (O2) BW Solo O2 0-30%v/v 0.1 % v/v 19.5% v/v 23.5% v/v
Oxone (O3) BW Solo O3 0-1 ppm 0.01 ppm 0.1 ppm 0.2 ppm
Phosphine (PH3) BW Solo PH3 0-5 ppm 0.1 ppm 0.3 ppm 1.0 ppm
Sulfur dioxide (SO2) BW Solo SO2 0-100ppm 0.1 ppm 2 ppm 5 ppm



   -Size: 2.74"H x 2.63"W x 1.42"D

   -Weight: 3.56 oz

   -Battery: ER14355 2/3AA lithium thionyl chloride

   -Display: LCD (128x64) with back light

   -Display Readout: Real-time reading

   -Control: 1 button

   -Sampling: Diffusion

   -Alarms: Multi-tone audible (95 dB @ 30 cm/12"), vibration, visible, and on-screen indication of alarm condition

   -Datalogging: Continuous datalogging (6 months @ 5 second intervals), user configurable intervals (1 to 300 seconds)

   -Humidity: 5-95% RH (non-condensing)

   -Calibration: Calibrate every 6 months and you should replace your BW Solo after sensor failure (Sensor Life: approx. 2 years)



Features

The Honeywell BW Solo is a single gas detector designed to detect and monitor hazardous gas levels in industrial settings. Some of its key features include:

- Compact and lightweight design for easy handling and portability.

- One-button operation for simple and intuitive use.

- Clear visual and audible alarms for quick detection of gas hazards.

- Large and easy-to-read display screen for convenient monitoring.

- Durable and rugged construction for use in harsh environments.

- Bluetooth connectivity for data transfer and remote monitoring.

- Compatible with Honeywell's IntelliDoX instrument management system for easy maintenance and calibration.

- Long battery life for extended use in the field.

- Wide range of sensor options for detection of different gases, including hydrogen sulfide, carbon monoxide, oxygen, and more.

Overall, the Honeywell BW Solo is a reliable and effective gas detector that helps to keep workers safe in hazardous environments.

Sensors

The 1-Series sensor used by the BW Solo is a single-gas detector developed by City Technology, a Honeywell company with 40 years of experience in manufacturing gas sensors. Sturdy and reliable, these sensors are capable of consistent operation in harsh environments and last up to 2 years, depending on exposure. The compact square design of the 1-Series sensor allows gas to diffuse into it more quickly, getting a faster response and accurate readings.

Operation

The Honeywell BW Solo uses a one-button operation system making it easy to use even while wearing gloves. Using the device itself or the Honeywell Safety Device Configurator software, you can customize set points, latching alarms and other parameters as well as have access to measurements such as short-term exposure limit, time weighted average, and the highest concentration of gas detected in the past 24 hours even if an alarm was not triggered.

The Honeywell BW Solo’s alarms include red LED illumination to guarantee high visibility as well as audible and vibrating alarms that are noticeable even in noisy environments.

Maintenance

The BW Solo is designed to simplify filter replacement by coming equipped with a detachable panel on the front of the device that can be removed by hand. From there, the sensor itself can be replaced as well without exposing the circuit board.

Languages

Real-time gas readings can be viewed in the following languages:

     -English

     -Spanish

     -French

     -Korean

     -Japanese

     -Russian

     -Others

Data Centralization

Optimize safety and productivity by using your Honeywell BW Solo with IntelliDoX docking stations and the Honeywell Safety Suite Device Configurator software.



Intelli DoX

The IntelliDoX system automatically transfers test results and performs actions according to your commands as soon as you’ve placed the detector in the dock. This allows you to immediately perform a bump test, change set points, enable calibration or bump reminders, update firmware, and more. It also allows you to transfer alarms, peak readings and other data to your computer via Ethernet or USB. The IntelliDoX station is able to work as a single dock or in a group of up to five. Each dock is equipped with an LCD screen, keypad and pump and is able to share power and calibration gas with other docks.

Device Configurator

This Windows-based device configuration software allows you to to export data, configure alarm set points, deploy firmware updates, and more. For even more options, you can subscribe to the cloud-based Honeywell SafetySuite Device Manager which gives you access to a variety of resources such as: text and email notifications for alarms, dashboards across multiple sites, versatile reporting, and one-stop storage.



Mobile Setup

The Honeywell BW Solo can also be paired with a smartphone where you can use the Device Configurator app to set up a detector, choose alarm set points, and more from up to 6 meters away using Bluetooth Low Energy. The app can also be used to see details about readings and email a certificate to stakeholders as well as updated firmware.

BW Solo Wireless

Using the wireless version of the Honeywell BW Solo, you can share your detector’s gas information with the desktop software without the use of a docking station. This lowers the cost of operation and gives you allows for simple and effective crew management.

Additional Safety Features

The Honeywell Safety Communicator mobile application, you have remote access to worker safety and location information from any device with an Internet connection. Detectors paired with your smartphone will send gas readings and other vital data in real time allowing instant access to potential safety concerns and other information.





Downloads:

BW Solo Manual

More Information
Manufacturer Honeywell / BWT
Call For Price Yes
Gas Ammonia (NH3), Carbon Monoxide (CO), Chlorine (Cl2), Chlorine Dioxide (ClO2), Ethylene Oxide (ETO), Hydrogen (H2), Hydrogen Cyanide (HCN), Hydrogen Sulfide (H2S), Nitric Oxide (NO), Nitrogen Dioxide (NO2), Oxygen (O2), Ozone (O3), Phosphine (PH3), Sulfur Dioxide (SO2)
Integrated Relays No
Sensor Type GSE (Gas Sensitive Electrochemical)
Operational Temperature Range -4 to 104 F (-20 to 40 C)
Weight 3.6 to 4.1 oz / 103 to 116 g (depending on installed sensor)
Dimensions 2.7 x 2.6 x 1.4 in / 7.0 x 6.7 x 3.6 x cm
Alarms Yes
Datalogging Yes
Datalogging Note Datalogging requires accessory
Field Replaceable Sensor Yes
Field Replaceable Battery Yes
Warranty 1 Year
Audible Alarm Yes
Calibration 6 Months
Sensor Life 2 years
Range Gas Dependent
Unit Features

- Compact and lightweight design for easy handling and portability.

- One-button operation for simple and intuitive use.

- Durable and rugged construction for use in harsh environments.

- Bluetooth connectivity for data transfer and remote monitoring.

- Long battery life for extended use in the field.

- Wide range of sensor options for detection of different gases, including hydrogen sulfide, carbon monoxide, oxygen, and more.

Sensor Range

Gas Dependent

- Over 15 Detectable Gases
